Help - how do I correctly reinstall these parts?
#1
Help - how do I correctly reinstall these parts?
As it will soon become apparent, I am an ATV novice. I am changing the oil on my Coolster 110 cc quad for the first time. The manual appeared to indicate that there are two oil drain plugs. The plug in the center was an oil drain plug but the one on the left side was not. When I removed this plug, a spring loaded shaft shot out. Doh!

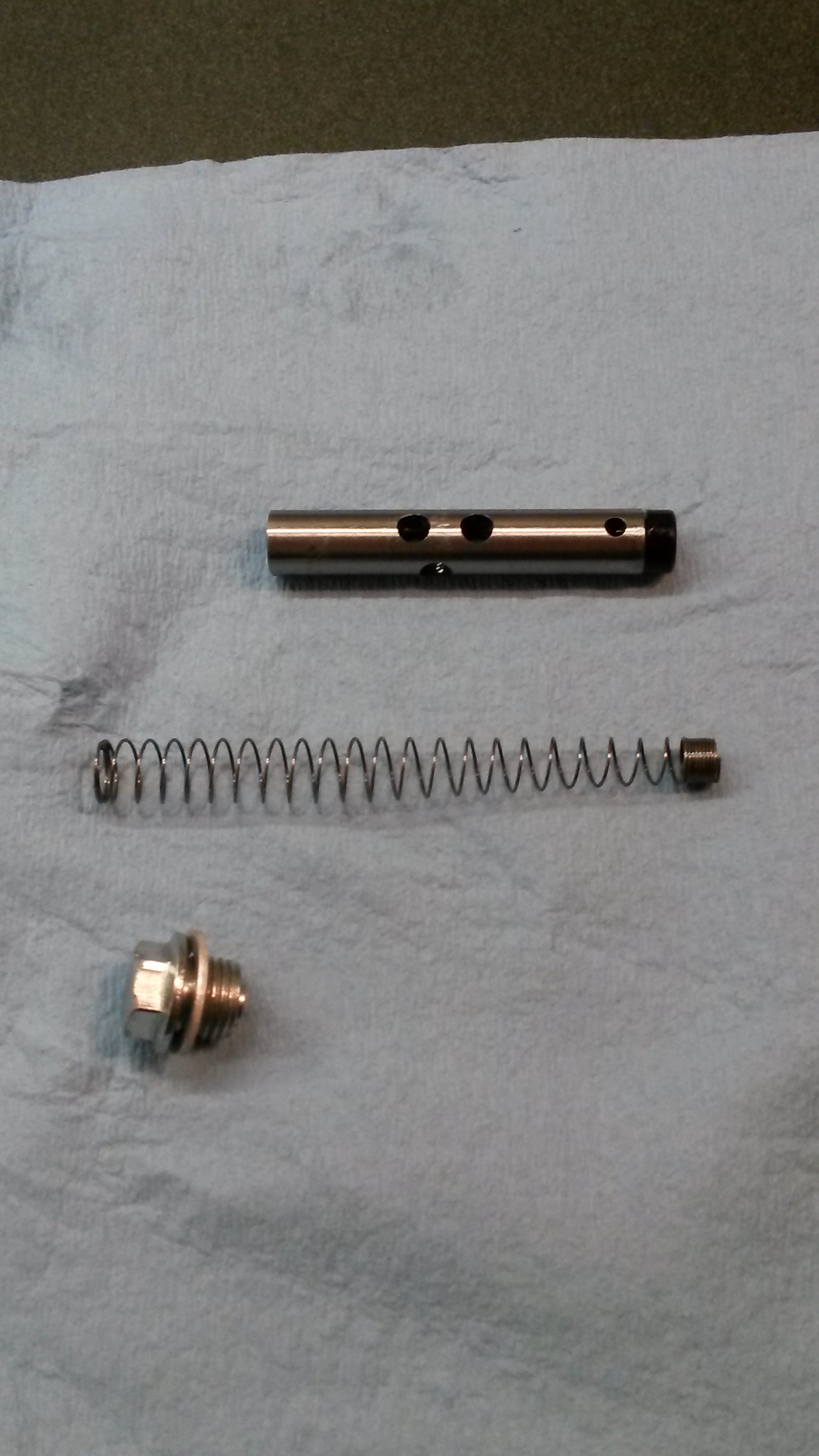

Please see the attachment named parts.jpg. What are these parts? Part of the transmission? How do I reinstall them correctly? Like what is shown in the attachment named part install order.jpg? Do the holes in the shaft need to be oriented in a particular way?
Please see the attachment named parts.jpg. What are these parts? Part of the transmission? How do I reinstall them correctly? Like what is shown in the attachment named part install order.jpg? Do the holes in the shaft need to be oriented in a particular way?
