1993 Timberwolf engine rebuild


  #1
Old 02-05-2016, 08:36 AM
sefh3's Avatar
Trailblazer
Thread Starter
Join Date: Jul 2011
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default 1993 Timberwolf engine rebuild
I'm needing help. I have the engine all tore down. I noticed this seal was laying on the bench. Were does this go?



Reply Like
  #2
Old 02-05-2016, 08:54 AM
Fasteratv's Avatar
Pro Rider
Join Date: Jan 2016
Location: Whitesburg, TN
Posts: 591
Likes: 0
Received 0 Likes on 0 Posts
Default
Can't help you....your manual doesn't provide any info on that particular part?

Reply Like
  #3
Old 02-05-2016, 09:27 AM
old polaris tech's Avatar
Polaris ATV Expert
Retired and loving it!
Join Date: Jun 2008
Location: North Texas
Posts: 24,352
Likes: 0
Received 33 Likes on 33 Posts
Default
Looks like a clutch lever case seal or shift shaft seal??

Reply Like
  #4
Old 02-06-2016, 07:38 AM
sefh3's Avatar
Trailblazer
Thread Starter
Join Date: Jul 2011
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default
The clutch cover seal is still there. I'm thinking it came from inside the motor from somewhere.

Reply Like
  #5
Old 02-06-2016, 08:01 AM
sefh3's Avatar
Trailblazer
Thread Starter
Join Date: Jul 2011
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default
I looked thru the manual and can't find it listed.

Reply Like
  #6
Old 02-06-2016, 08:31 AM
old polaris tech's Avatar
Polaris ATV Expert
Retired and loving it!
Join Date: Jun 2008
Location: North Texas
Posts: 24,352
Likes: 0
Received 33 Likes on 33 Posts
Default
You'll either find it when you start to put it back together or it could be like some aftermarket kits I've seen that have extra parts that may be used on an earlier or later models.

Reply Like
  #7
Old 02-06-2016, 08:35 AM
sefh3's Avatar
Trailblazer
Thread Starter
Join Date: Jul 2011
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
Default
The problem is I didn't buy a kit. It came off the motor from somewhere as it's still on the bench. Just need to know where it goes. The picture was for reference.

Reply Like

Trending Topics

  #8
Old 02-06-2016, 08:49 AM
old polaris tech's Avatar
Polaris ATV Expert
Retired and loving it!
Join Date: Jun 2008
Location: North Texas
Posts: 24,352
Likes: 0
Received 33 Likes on 33 Posts
Default
Originally Posted by sefh3
The problem is I didn't buy a kit. It came off the motor from somewhere as it's still on the bench. Just need to know where it goes. The picture was for reference.
OOPS.. Then you better look real close.

Reply Like
  #9
Old 02-06-2016, 10:42 AM
merryman's Avatar
Elite Pro Rider
Join Date: Oct 2013
Location: Lancaster England
Posts: 6,847
Received 300 Likes on 294 Posts
Default
I've only rebuilt 350 Yam engines but it looks like the oil gallery seal, can't remember if it goes between head and cylinder or cylinder and block, but fits round one of the studs.

Reply Like
  #10
Old 02-08-2016, 06:26 PM
Timbo2500's Avatar
Trailblazer
Join Date: Nov 2015
Location: Orlando, FL
Posts: 61
Received 0 Likes on 0 Posts
Default

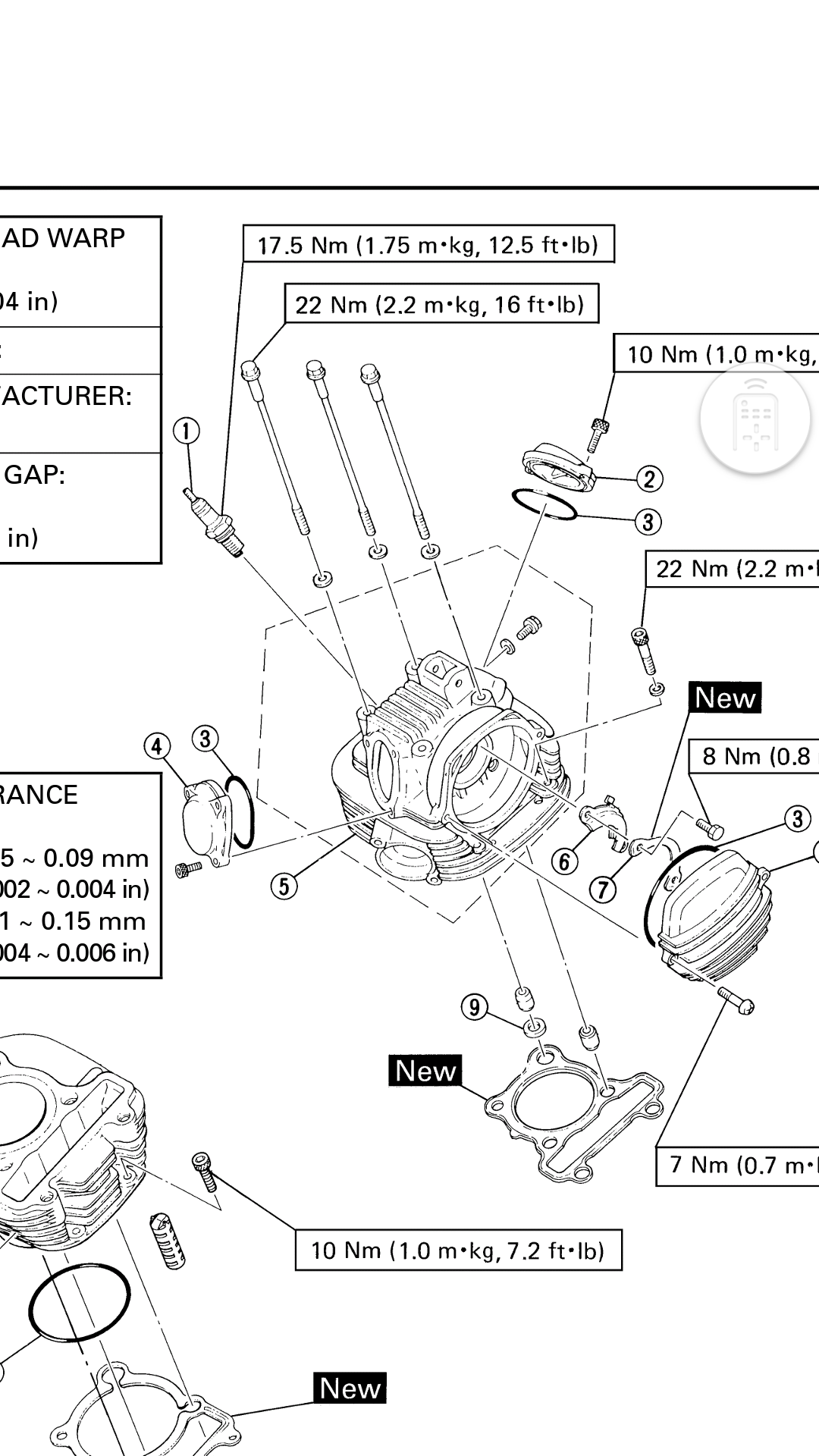

Like Merryman said, it looks like the seal on # 9 of the attached cylinder head picture. Also look at the other picture with my finger pointing at the location where it goes on my Big Bear 250...




Reply Like
