2025 Polaris RANGER XP 1000 Northstar Ultimate Edition Review

We put the new Ultimate through east-coast winter.

Year after year we notice a pattern where the Polaris RANGER line finds itself among the top selling side-by-sides in the world. And, surprisingly, our experience with the more recent incarnations has been fairly limited. You can hardly blame us there – whenever we get the call to come play with the latest models, we’re drawn almost magnetically to the RZRs and XPEDITIONS, leaving the poor do-it-all RANGER behind where it quietly impresses everyone who climbs into one.

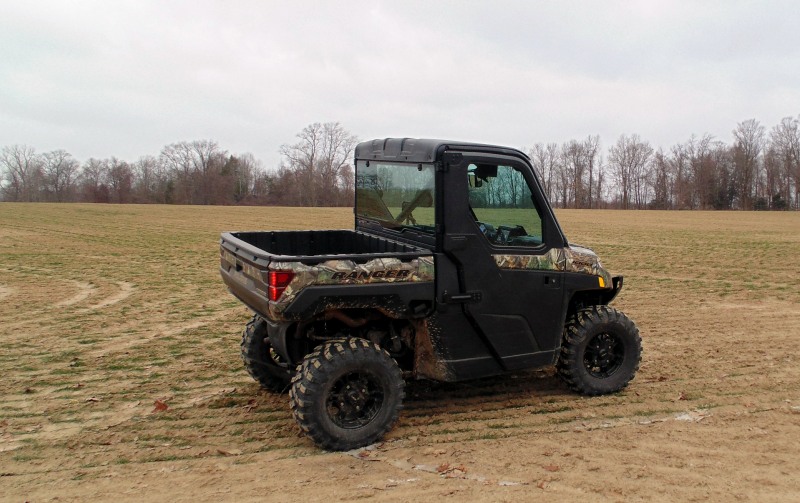

All of that changed this winter when we took delivery of a 2025 RANGER XP 1000 Northstar Ultimate Edition (3-seat) in Pursuit Camo. A unit identical to ours can be had for $34,000.

To say it was an interesting time of year for testing would be the understatement of the decade. It was 5° above zero on the first weekend, it was 60 two days later then 27 with blizzard-like conditions by midweek. We can honestly state that we got to experience the machine in all four seasons in a matter of days.

Real world testing, as you might imagine, was a pretty mixed bag of conditions – we put it through soupy mud, frozen hardpack, snow, ice, rain. It saw tight trails, big open fields, a lot of water in various phases. We used it to hop fallen limbs, climb slippery slopes, and as genuine transportation when the weather took a turn for the worse. Let’s not get ahead of ourselves, though. We’ll start by telling you about this particular trim spec.

Trims

The full-size RANGER line basically breaks down into the following gas engine options: 570, 1000 and 1500cc. Once you land on the engine of choice, you have several trim and seating configuration options (typically from 2 to 6) and the trims then specify the additional amenities.

In our case the Ranger 1000 package boasts the following options when you upgrade to the NorthStar edition: Factory-installed heating & air conditioning system, Pro Shield cab system, 29″, 8-Ply Pro Armor X-Terrain tires with 14″ ground clearance, Polaris HD 4,500-Lb. winch with synthetic rope, autostop & wireless remote, 82 HP ProStar engine, USB charge port & battery charge port, 2,500-Lb. towing capacity & 1,000-Lb. box capacity

Then when you opt for the Ultimate package, you get the following goodies added to the mix: Full glass tip-out windshield & power front windows, 7″ display (powered by RIDE COMMAND), with factory rear camera and JBL Trail Pro 2000 audio package.

This is a great way of doing business because if you decide a RANGER is for you but don’t need all of the bells and whistles, the RANGER XP 1000 starts at a very affordable $20,999. And for 2025, every RANGER 1000 comes standard with a roof.

Climbing In

So what’s it like to climb into the XP 1000 Northstar Ultimate? You notice right away that things are unique with the backward opening doors (“suicide doors” if you’re the hotrod type). We’d like to tell you we immediately adapted to this and didn’t walk to the rear of the door to find the handle nearly every single time we wanted to get in but alas. We are slow learners around here.

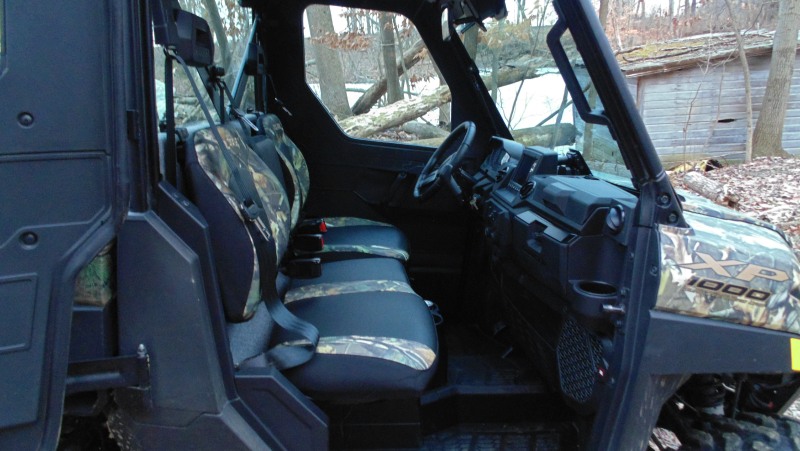

Seating is of the bench variety with two semi-defined buckets for the driver and passenger positions and a third seat directly in between the two that positions the bend in the occupants legs over the factory cup holders. We really appreciated the matching camo accenting and found the interior to be roomier than it would appear on the outside.

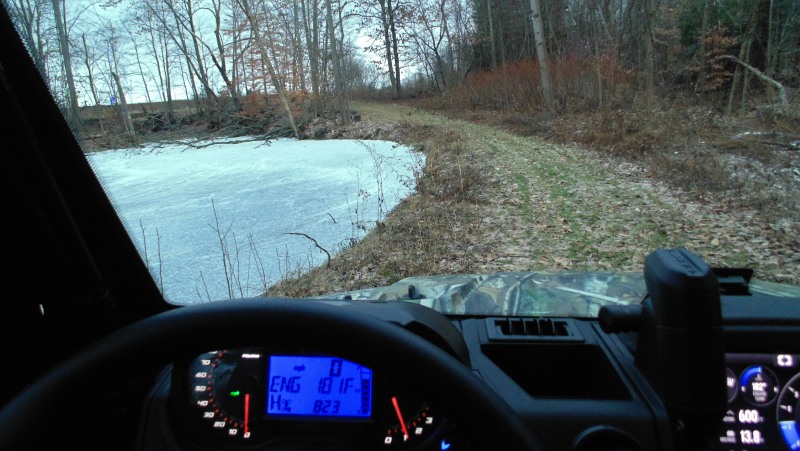

The view from the driver’s seat can best be described in a single word: commanding. The RANGER seats its occupants high and the view over the stubby hood is excellent. You have tilt steering here as well a seat with adjustments so finding a comfortable cruising position is never an issue.

Firing the machine up is accomplished via a key in one of few cramped areas on the dash between the steering wheel and shifter but, occasional snagged glove aside, the big fuel injected 1000 lights up confidently with a steady purr.

Blast Off

Before you go zipping off into the forest, you have a few transmission choices to make. Beginning with drive wheels, a rocker switch allows you to select between AWD up top or a single rear driving wheel (Turf mode) on the bottom. Toggling it in the middle leaves the machine in true rear drive (where both rear wheels are driving).

You put the machine in gear via a nicely-actuated dash mounted shift lever that offers both a H(igh) and L(ow) range. Once you’ve dialed in your settings, the right pedal puts the RANGER into motion.

That 82-hp dual-overhead-cam inline-twin doesn’t come off the line like a race machine (get a RZR if that’s your goal) but it reveals a very usable low end that builds acceleration linearly. The RANGER is excellent at sniffing out traction and, try as we may, could barely find opportunities for it to slip a wheel. And do keep in mind we were testing in mud – soupy mud, snowy mud, frozen mud, icy mud and did we mention mud? Even still, we were able to do a lot of trail exploring in rear drive with only occasional dabs in AWD when the going really got slick.

AWD was efficient and drama-free every time we found ourselves calling upon it even if it felt a bit slower to engage than we’ve encountered on other similarly spec’ed models on the Polaris line. However, this isn’t a slight against the AWD, it’s a simple matter of physics. You see AWD (rather than 4×4) relies on the detection of slippage to allocate power to the wheels that need it and the RANGER is ridiculously good at finding traction. In all of our torture-testing, we never managed to spin the wheels here. Even if you’re sloppy with your throttle application, the RANGER is going to turn every single engine RPM into forward motion. As such, in ugly conditions, flip it into AWD and take comfort knowing the power will arrive when and where it’s needed but, more often than not, the XP 1000 claws its way out of trouble before it even comes to that.

The RANGER line leans toward the work and utility side of the Polaris SxS spectrum and, in the real world, the machine proves very adept in this environment. If loading, hauling and dragging are your forte, you can stop looking, you found your workmate. That exposed box out back is good for 1,000 pounds and it dumps effortlessly. We towed more than a few stuck ATVs out on the trails without ever making the XP break a sweat. We estimate the heaviest of these clocked in somewhere around a thousand pounds, which Polaris says is not even half of the 2,500 pound towing capacity of the machine itself – and do keep in mind there is a 4,500 pound winch up front for when even that isn’t enough.

Trail Time

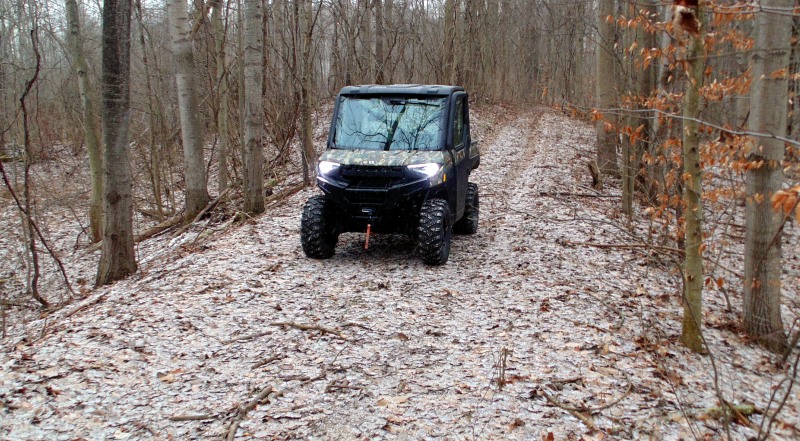

Okay, we’ll admit it. As impressive as UTVs like this are at working the farm, ranch or construction site, we’re trail junkies at heart around here. You can be assured 85% of our three months with the RANGER XP 1000 were spent deep in the woods, on tight twisting Northeastern log roads, pounding double track and attempting steep climbs. How does it work in these conditions? Better than it has any right to!

We turned the cab heater up, let the windshield wiper clear away the frost and spent full days in the woods and marveled at how much comfort Polaris packed into this little cabin. While not quite as road-going comfortable as say the XPEDITION 1000 we were testing simultaneously, the RANGER manages to move three adults around in climate-controlled bliss.

Of course, given that this is a more utility oriented package, speed freaks are going to quickly discover pinning the throttle while hard cornering introduces a wave of body lean. Never enough to where you’ll fear tipping the machine, but trying to keep up with the zippier ATVs and RZRs out on the trails will become more trouble than it’s worth, especially in dry conditions. Once things get ugly and technical, however, the RANGER starts balancing things out.

You get your choice of three throttle maps as well – standard, work and performance. In rear drive, with the performance map selected, we came away really impressed with the RANGER’s ability to handle all day trail expeditions. This may be a work machine at heart but those of us who seek adventure will find a lot to like here as well.

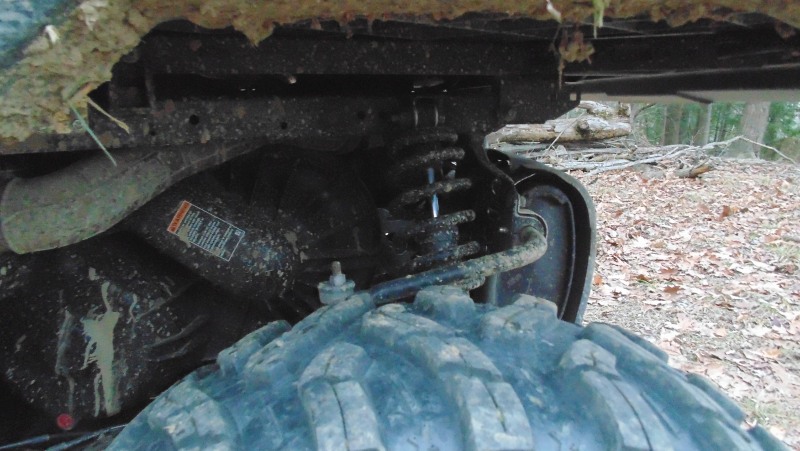

The suspension, too, is most comfortable in slower, technical conditions, offering a springy rebound after the gas-charged dampers take away any hard hits. We did get to move out around 40mph on some grape farm dirt roads and found the whole package to be sturdy, competent and surprisingly rattle and squeak-free. 14-inches of ground clearance is remarkable in action, especially in some of the deep snow we found ourselves traversing.

Electronic power steering is excellent, again reminding us of the performance we’ve been getting from the XPEDITION 1000. It offers a refined, almost automotive quality, feel at the wheel without muting terrain feedback entirely.

Odds and Ends

In case you hadn’t noticed when we explained the above breakdown of trim packages, the RANGER XP 1000 NorthStar Ultimate contains more than its fair share of bells and whistles. We could probably fill this entire review just listing them all, never mind testing and then telling you about them. But as nobody reads reviews for just the spec sheet, let’s discuss some of the highlights.

Braking – 4-wheel hydraulic disc brakes with dual-bore front calipers bring the RANGER down from speed in a hurry. We’ve used this system on many of Polaris’ sportier machines and know what it’s capable of. While it’s true a lack of ABS means these brakes can be locked up in aggressive enough applications, it’s very unlikely the RANGER will ever find itself in a situation where that would be an issue.

Climate Control – While the time of year prevented us from spending much time with the air conditioning, we can certainly attest to the effectiveness of the heater and 3-speed fan. The system takes a little time to get warm (so letting the RANGER idle for 5 minutes is a good practice on those really cold days) but once it does, even our most cold-blooded passengers came away thrilled.

Shifting – This may be a minor factor in the overall decision-making process of buying a new SxS but this is the best gear shifter we’ve used on a Polaris to date. It’s positioned well, gates precisely and effortlessly and never once caused the transmission to slip out of gear.

Ride Command – If you’ve ever read any of our other Polaris reviews, you’re surely tired of us singing the praises of this system but so long as they keep sending us vehicles equipped with it, you’re going to have to endure our rhetoric.

The 7″ glove-touch display center Powered by Ride Command 7S does everything you can fathom from onboard GPS, to instant route maps, to group ride tracking, to cellular-free communication. This system is good and it keeps getting better with every iteration. This is really saying something because every time we’ve used it in the past, we came away thinking there was nothing that could possibly need improving. Somehow Polaris keeps managing to make the best even better.

Conclusion

This is when we’re supposed to come full circle with our thoughts. We started out by saying every year the RANGER line tops sales charts and here we’re supposed to say “now we know why”. The thing is, that’s a bit too cookie cutter. We came into review expecting the RANGER to be a nice little work vehicle – a smaller, more maneuverable off-road pickup truck and if that’s where the story ended, you’d get your copy and paste conclusion.

What we left with was a bit of a surprise. We’ve tested the RZR Pro R, General 1000, XPEDITION ADV 1000 and now the RANGER XP 1000 and are really impressed with what we call Polaris’ combining DNA. What’s that you ask? Well, it’s when refinements on one line make their way over to the other lines. As the RZR gets faster, so does everything else. As the XPEDITION brings unparalleled refinement to the trails, so does everything else.

For 2025 the entire RANGER 1000 line got some updates – a new front end, transmission refinements and trim packages that come with more standard features. What the spec sheets won’t tell you, however, is that the DNA of all Polaris’ SxSs can be felt here.

The 2025 Polaris RANGER XP 1000 NorthStar Ultimate should be a top choice for work and utility but take comfort in knowing that this won’t disqualify its owner from many great times on the trails, in group rides, on all day expeditions and serving as the ultimate chase vehicle – with the ability to tug anyone free regardless of how badly they’ve gotten themselves stuck. Does that qualify as work? Perhaps, but we’re still lumping it in with fun.

Specs

Engine & Drivetrain
Cooling Liquid
Cylinders Displacement 999cc
Drive System Type High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS) Not Equipped
Engine Type ProStar 4-Stroke Twin Cylinder DOHC
Fuel System/Battery Electronic Fuel Injection
Horsepower 82 HP
Transmission/Final Drive Gen 2 Automatic PVT H/L/N/R/P; Shaft

Dimensions

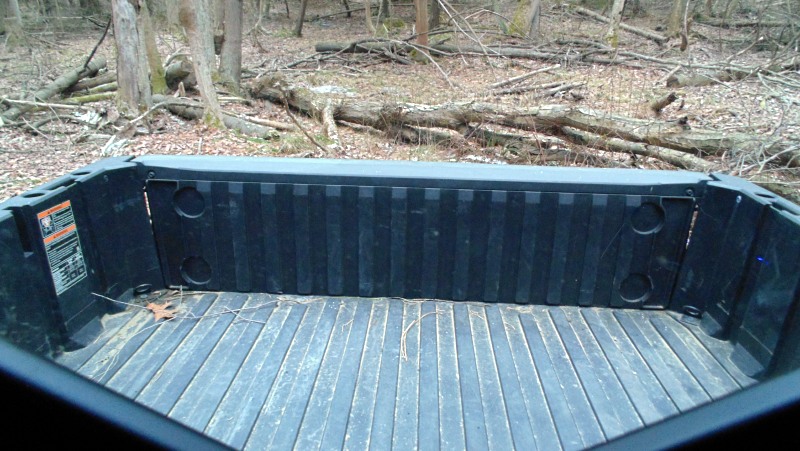

Bed Box Dimensions (L x W x H) 36.75 x 54.25 x 12.5 in (93 x 138 x 32 cm)
Box Capacity 1000 lbs (454 kg) / CA Models: 600 lbs (272 kg)
Estimated Dry Weight 1949 lbs. (884 kgs)
Fuel Capacity 11.5 gal (43.5 L)
Ground Clearance 14 in (36 cm)
GVW 3600 lbs (1633 kg)
Hitch Towing Rating 2,500 lb (1,134 kg)
Hitch Type Standard 2 in (5 cm) Receiver
Overall Vehicle Size (L x W x H) 120 x 65 x 79.5 in. (305 x 165 x 201 cm)
Payload Capacity 1275 lbs (578 kg) / CA Models: 1100 lbs (499 kg)
Person Capacity 3
Water Fording Height Equal to the Floorboards
Wheelbase 81 in (206 cm)

Brakes
Front/Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake Park In-Transmission

Additional Specifications
Adjustable Driver Seat Standard
Audio System JBL Trail Pro 2000
Cargo System Lock & Ride
Electronic Power Steering High Output EPS
Instrumentation 7” Display Powered by RIDE COMMAND: Plow Mode, Group Ride, GPS Navigation, Bluetooth, AM/FM Radio; Factory Rear Camera; Dual-sweep Analog Dials w/ 4″ LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, USB Charge Port
Lighting Dual LED Headlights, 1250lm Low Beam, 2300lm High Beam, Dual LED Tail Lights

Other Standard Features
Premium Pro-Shield Cab; Doors with Powered Front Windows; Tip-Out Glass Windshield with Wiper; Rear Glass Panel; Factory-Installed Heat, AC, Defrost; Rearview Mirror; Premium Steering Wheel and Interior Accents; NorthStar Tailgate Badge; Front Bumper with Integrated Winch, Plow & LED Mounts; Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding; Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote; Polaris Pulse Electrical System (6-Position) Underhood Busbar and 6-Position Roof Busbar; 12V Accessory Outlet; Battery Trickle-Charging Outlet; USB Outlet
RIDE COMMAND+Available as Accessory
Tilt Steering Standard

Tires / Wheels
Front Tires 29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires 29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating 8-Ply Rated
Wheels Aluminum

Suspension
Front Suspension Dual A-Arm, 10 in (25.4 cm)
Rear Suspension Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius 13 ft. (4.0 m)
