Kawasaki Reveals 2016 UTVs

2016 KAWASAKI MULE PRO-FX

The Kawasaki MULE PRO-FX has single-row seating and a class-leading cargo bed for even greater practicality, dependability and comfort.

Having received acclaim and awards following its launch last year, the powerful and dependable Kawasaki MULE PRO-FXT is now available as a single-row seating variant called the MULE PRO-FX for the 2016 model year, giving full-size side x side customers another purchase choice. The new single-row PRO-FX gains a larger steel cargo bed, giving it the largest in its class and 20% bigger than any previous MULE, without sacrificing any of the cab’s comfort, but increasing its hauling capacity.

Developed alongside the PRO-FXT, the new MULE PRO-FX shares the same engine and chassis platform, meaning it is still the fastest and most powerful MULE™ ever built, with independent suspension, powerful disc brakes, effective engine braking and optional speed-sensitive power steering.

The cargo bed has a massive 1000 lb carrying capacity and is able to accommodate a full-size wooden pallet with the tailgate closed – something the competition can’t do!

The PRO-FX is also able to tow up to 2000 lb when the optional hitch is fitted, so the MULE PRO-FX will be perfectly suited to the job site, hobby farm or for a weekend adventure in the back woods. With this much capability, the MULE PRO-FX will allow you to clear your “To-Do List”, leaving you plenty of downtime once the work is done, and is always available for fun on the weekends.

SPECIAL FEATURES OF THE 2016 KAWASAKI MULE PRO-FX
•Class-leading 48 lb-ft of torque from new 812cc three-cylinder fuel injected engine
•Fastest, most powerful MULE ever built
•NEW Largest high-tensile steel cargo bed in its class
•Haul up to 1000 lb (where permitted by state law) (600 lb max for California models)
•Tow up to 2000 lb (where permitted by state law) with 2” receiver hitch
•Independent front and rear suspension, disc brakes, CVT, Electric Power Steering
•NEW Comfortable, single-row bench seating with auto-style seatbelts for each occupant
•Cockpit features tilt steering (except non-EPS model), multi-function LCD display and multiple 12V outlets powered by high-output alternator
•Roll Over Protective Structure and automotive-style doors
•Non-EPS, EPS, EPS LE and CAMO models available
•Backed by a Kawasaki STRONG Limited Three-Year Warranty
•A vast range of Kawasaki Genuine Accessories available from launch

The MULE PRO-FX is from Kawasaki’s manufacturing plant in Lincoln, Nebraska, and the result of Kawasaki’s 130-year history in heavy industry. It is part of Kawasaki’s expansive side x side family that continues to be Kawasaki STRONG, built strong to work hard, backed by a factory three-year limited warranty and recognized as the market leader.

ENGINE & TRANSMISSION

The strength of the Kawasaki MULE PRO-FX starts with 48 lb-ft of torque from its 812cc, three-cylinder engine with efficient Digital Fuel Injection (DFI) that has been tuned to deliver optimum performance throughout the rev range. Not only does it have excellent pulling power when fully loaded, but the MULE has excellent acceleration and hill-climbing ability when combined with its four-wheel drive system.

As one of the fastest MULEs ever built, the PRO-FX will help users get the job done more efficiently by taking them to the job site more quickly. It will also get them home again in plenty of time for that fishing trip they’ve been promising themselves. And that’s where the MULE PRO-FX scores again, because it can be loaded with gear and head back out to the lake.

Thanks to a high-output alternator, which delivers an incredible 60.8 amps at 2,000rpm (with the headlights on), occupants can power their accessories during the workweek or on all-day adventures thanks to a pair of built-in 12-volt outlets.

There are two outlets to power everything from phones and tablets to GPS devices and other technology you can’t be without.

Transferring the engine’s performance to the ground is a specially tuned CVT transmission that was designed for the impressive 48 lb-ft of torque. It delivers smooth, usable power to the tires, maximizing traction and contributing to the MULE’s precise maneuvering. The CVT also provides natural engine braking to help when descending slopes, with consistent engine hold-back to increase driver confidence, especially when the vehicle is loaded.

The CVT is combined with an electrically selectable 2WD/4WD system that has a dual-mode rear differential. Convenient dash-mounted switches allow the driver to instantly engage the systems, giving full control over the 4WD and locking rear differential.

The dual mode on the differential allows it to be fully locked for maximum traction, but it can minimize the vehicle’s impact on the terrain when unlocked.

Equipped with this system, the occupants’ workload can be completed quickly and efficiently, no matter the type of terrain or type of job being tackled.

HIGH CAPACITY HAULING & TOWING

The MULE PRO-FX boasts the largest cargo bed in its class. Measuring an impressive 54.1×53.3×11” it will easily accommodate a full-size wooden pallet (48×40”), increasing the vehicle’s usefulness around the work site.

Because it is built Kawasaki STRONG, the PRO-FX has a sturdy high-tensile, diamond-plate steel cargo floor with a maximum cargo capacity of up to 1000 lb (600 lb max in CA). This enables the user to efficiently haul large loads including gear, tools, supplies, hay bales and so forth. What’s more, the cargo bed has a gas-assisted tilt feature that makes it easier to raise the empty bed to allow easy access to the engine compartment.

The cargo bed also has integrated steel cargo rails and internal ridges, allowing loads to be firmly secured using the abundance of Kawasaki Genuine Accessories that are available from the Kawasaki dealer network. So whether you’re on the work site, hobby farm or heading to the lake with friends, the storage options of the MULE PRO-FX means you will get the job done, no matter what the day brings.

The tailgate is secured by two sturdy levers, which make it easy to open and close. The tailgate design also incorporates built-in cupholders, which come in handy when the tailgate is lowered. The cargo bed walls are designed with slots to accommodate Kawasaki Genuine Accessories’ cargo bed dividers. These allow cargo to be separated and stowed more securely for traversing difficult terrain.

If for some reason, the maximum load capacity of 1000 lb is insufficient for the user’s needs, the integrated 2” hitch receiver can enhance the versatility of the MULE PRO-FX. When equipped with an optional hitch, the vehicle is able to tow a substantial 2000 lb load (where permitted by state law) with the pickup truck-style receiver, giving the new Kawasaki the ultimate versatility.

In order to successfully haul such large loads, hydraulic disc brakes use 212mm rotors on all four corners. They combine with the dependable engine braking system to produce effective stopping power anytime, anywhere.

Dual-piston calipers in the front and single-piston calipers in the rear give the driver strong yet progressive stopping power. An easily accessible mechanical rear parking brake was also included to keep the MULE PRO-FX securely in place when stopped. A fuel injection control limits engine speed if the driver attempts to pull away with eh parking brake engaged.

SPACIOUS CABIN & EPS

With the tremendous durability and versatility of the MULE PRO-FX, all-day driving comfort was a high priority, allowing the driver and up to two passengers to get on with the job at hand. The cabin is particularly spacious, providing ample leg- and headroom, as well as a thick-cushioned bench seat for up to three full-size adult occupants.

All passengers are secured by conventional three-point seatbelts and automotive-style doors are standard to ease entry. The doors are also far easier to use than nets, making the occupants’ experience significantly more enjoyable with the MULE PRO-FX.

For the driver’s convenience there is a tilt-adjustable (except non-EPS models), thick grip steering wheel, which provides up to 40-degrees of adjustment to ensure a comfortable fit. Or it can be tilted out of the way to facilitate access to the cabin. All passengers have secure handholds throughout.

The EPS, EPS LE and EPS CAMO models of the MULE PRO-FX side x side take full advantage of Kawasaki’s advanced speed-sensitive Electric Power Steering (EPS) system, which was highly praised during its introduction in the PRO-FXT. It considerably reduces steering effort, but ensures the steering has optimal feedback as speed increases, enhancing handling. The EPS helps to reduce steering kickback on rough terrain, reducing driver fatigue. Furthermore, it helps the driver enjoy a tight turning radius of just 16ft.

INDEPENDENT SUSPENSION

Another element of the PRO-FXT that was universally applauded was its front and rear independent suspension. By soaking up the bumps it provides excellent comfort, and by ensuring the tires remain in contact with the ground thanks to a generous 8.7” (left rear is 8.5”) suspension travel, traction also benefits.

The suspension utilizes twin-tube, preload-adjustable shocks at each corner, with large diameter tubing for the A-arm design, ensuring Kawasaki’s legendary reputation for durability is maintained. Extra ground clearance (10.2”) also gives the driver confidence that the lower chassis will clear rocks and large obstacles. The MULE PRO-FX also delivers in the key areas such as an overall length of 133.3” and a relatively compact 92.3” wheelbase. The shorter wheelbase and high ground clearance provide a favorable breakover angle of 26-degree to reduce the chance of bottom out when cresting a ridge or clearing an obstacle. The high 78-degree approach and 64-degree departure angles further contribute to the MULE PRO-FX side x side’s off-road performance. The short overhangs reduce the chance of hitting the front bumper or scraping the tail when climbing and descending steep slopes.

The suspension uses rubber bushings at the attachment points to enhance durability and reduce service intervals. The MULE PRO-FX engine is also rubber-mounted to reduce vibration and contribute to a high quality, comfortable ride.

DURABILITY – KAWASAKI STRONG

With a background in the construction of ships, aircraft and earth-moving equipment, Kawasaki Heavy Industries, Ltd brings the same engineering disciplines to all its products, especially its side x side vehicles. So the MULE PRO-FX has a solid welded frame that emphasizes lateral and torsional rigidity for both durability as well as great handling. By eliminating flex, the ladder-type frame is able to provide good chassis response and traction.

A Roll Over Protective Structure (ROPS) further increases stiffness of the entire chassis, giving the driver superior handling and driving characteristics, while also ensuring long-lasting durability and occupant security.

It’s not just the passengers that are protected – the MULE PRO-FX has integrated inner wheel wells because Kawasaki wanted to keep mud and debris out of the engine compartment, protecting its vital components. The electrical equipment is also mounted high in the vehicle to keep it away from water, and the fuel tank is centrally mounted, away from the wheels to reduce the risk of damage from debris thrown up by the tires. Additionally, steel side guards add protection from side impacts.

Another thoughtful aspect is the various maintenance covers that provide quick and easy access to the key service areas on the vehicle. They allow the user to check the oil level, service the air cleaner, check fuses as well as access the battery and ECU connection.

Potential buyers will be happy to see the steel front bumper and the high-tensile steel cargo bed. These crucial parts provide greater durability and strength when compared to the plastic alternatives commonly offered by its competitors.

Of course, with the MULE PRO-FX built so tough, it is naturally backed by the industry-leading Kawasaki STRONG three-year limited factory warranty.

STORAGE

Occupants will appreciate the storage space under the front seat. This allows users to securely store their equipment and gear in the optional Kawasaki Genuine Accessories bin.

In addition, there is a handy glovebox as well as three dashboard pockets – with the center pocket large enough to accommodate the Kawasaki Genuine Accessories audio system – and two cupholders built into the bodywork in front of the dashboard.

DASHBOARD

The interior features multi-function LCD instrumentation. It provides a large, intuitive, easy-to-read display that includes an array of information such as digital speedometer, odometer and hour meter, fuel gauge, dual trip meters, water temp, 2WD/4WD operation, clock and parking brake indicator to keep the driver fully informed at a glance. There is a lights on the diff lock switch to indicate when it is selected. There are also two DC power outlets provided for convenient access to charge accessories and gadgets.

POWERFUL LIGHTING

The same high-power alternator responsible for charging smartphones and devices will also provide excellent visibility after dark and in poor weather conditions by powering the 55/60 watt Hi/Low halogen headlights that come as standard equipment on all models.

Additionally, the LE and CAMO models in the MULE PRO-FX range get high-intensity, auxiliary LED headlights with Hi/Low settings for even greater illumination (available as accessories on other models).

LED lights are specified on most high-end machinery for their extremely bright output, although Kawasaki’s engineers were also interested in the extended durability and low current draw that LEDs offer.

ONE MULE, FOUR MODELS

The MULE PRO-FX comes in four models, each packed with a host of Kawasaki STRONG features.

The non-EPS model comes standard with steel wheels and two DC outlets in the cab. It is available in the Super Black finish.

The second variation in the PRO-FX lineup is the EPS model. This comes standard with the same amenities as the non-EPS but with the addition of Electric Power Steering (EPS) and a tilt steering wheel. This model is available in Timberline Green and Super Black, with a contrasting graphic along the doors and cargo bed.

Next in the range is the desirable EPS LE. This variation comes standard with a host of additional upgrades over the EPS model, including LED auxiliary headlights, aluminum wheels and a composite sun top. Color options are Timberline Green and Dark Royal Red with a contrasting graphic along the doors and cargo bed.

The MULE PRO-FX is also available in Realtree Xtra Green Camo, which gives the avid hunter the ultimate color scheme for any adventure. The Camo model includes EPS, tilt steering function and LED auxiliary headlights as part of the package.

ACCESSORIES

Owners of the new Kawasaki MULE PRO-FX will enjoy the opportunity to accessorize and specialize the vehicle to accentuate their individual needs and style.

Owners wishing to accessorize the vehicle can take advantage of more than 60 Kawasaki Genuine Accessories. Owners might like to obtain a Kawasaki-certified WARN® winch package, for example. Or you could opt for a WARN® ProVantage™ Plow System to tackle winter storms. In that case, you might also choose to provide extra protection for the vehicle, equipping it with both skid plates and brush guards.

To protect the occupants from the elements, Kawasaki offers everything from a complete cab to hard and soft roofs, to full and half windshields as well as hard or soft cabin enclosures and doors. And all these Kawasaki Genuine Accessories were developed alongside the vehicle, for the perfect installation, fit and finish.

MULE PRO-FX owners can also choose from accessories such as an audio system, heater, bed extender, cargo divider, dual battery kit and so much more.

As an added bonus, the industry-leading Kawasaki STRONG Three-Year Warranty remains intact after the purchase and installation of any of these accessories.

Consumers interested to see how their new MULE PRO-FX will look with Kawasaki Genuine Accessories in place will now be able to build their vehicle online, adding their favorite accessories and seeing them in place. They then have the opportunity to print their custom build list and take it to their local Kawasaki dealer to purchase the exact vehicle specification they designed. Visit www.kawasaki.com for full details.

KAWASAKI STRONG THREE-YEAR LIMITED WARRANTY

Customers can take pride in the knowledge that the new MULE PRO-FX is assembled from foreign and domestic components right here in America at Kawasaki’s manufacturing facility in Lincoln, Nebraska.

Completing the appeal of the MULE PRO-FX is Kawasaki’s promise to keep you running STRONG with our standard Kawasaki STRONG Three-Year Limited Warranty. We don’t just want you to enjoy the “King of Mules,” we want you to live the MULE lifestyle and be inspired by its heritage: a heritage of powerful, durable, fun-to-drive vehicles.

2016 KAWASAKI MULE PRO-FX EPS LE

Engine
4-stroke, 3-cylinder, DOHC, Liquid-cooled
Displacement
812cc
Maximum Torque
48 lb-ft @ 3,500rpm
Bore x Stroke
72 x 66.5mm
Compression Ratio
9.5:1
Fuel System
DFI w/34 mm throttle body
Ignition
Battery and coil
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable 4-wheel drive with dual-mode rear differential
Frame Type
Steel tube ladder type
Suspension / Wheel Travel
Double wishbone / 8.7” front, double wishbone / 8.5 / 8.7” rear
Tires, Front / Rear
26 x 9.00 R12 / 26 x 11.00 R12
Brakes
Hydraulic, dual 212mm front discs with two-piston calipers, dual 212mm discs with single-piston calipers, mechanical parking brake
Steering
Electric power assisted rack-and-pinion
Fuel Capacity
7.9 gallons
Curb Weight
1801.5 lb
Overall Length
133.3”
Overall Width
64”
Overall Height
79.7”
Wheelbase
92.3”
Ground Clearance
10.4”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
54.1 x 53.3 x 11”
Seating Capacity
3
Load Capacity
1,649 lb
Cargo Bed Capacity
1,000 lb (where permitted) 600 lb max capacity for California models
Towing Capacity
2,000 lb (where permitted)
Turning Radius
16ft
Alternator Output (max)
75 amp
Lighting
(2) 55/60W sealed-beam headlights, (2) LED auxiliary lights
Instruments
Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, warning indicators for 2WD/4WD, water temperature, oil pressure, fuel injection, CVT, neutral, reverse and parking indicators, seatbelt reminder lamps
Color Choices
Timberline Green, Dark Royal Red
MSRP
$14,199
Warranty
Kawasaki Strong 3 Year Limited Warranty
Kawasaki Protection Plus (optional)
12, 24 or 36 months

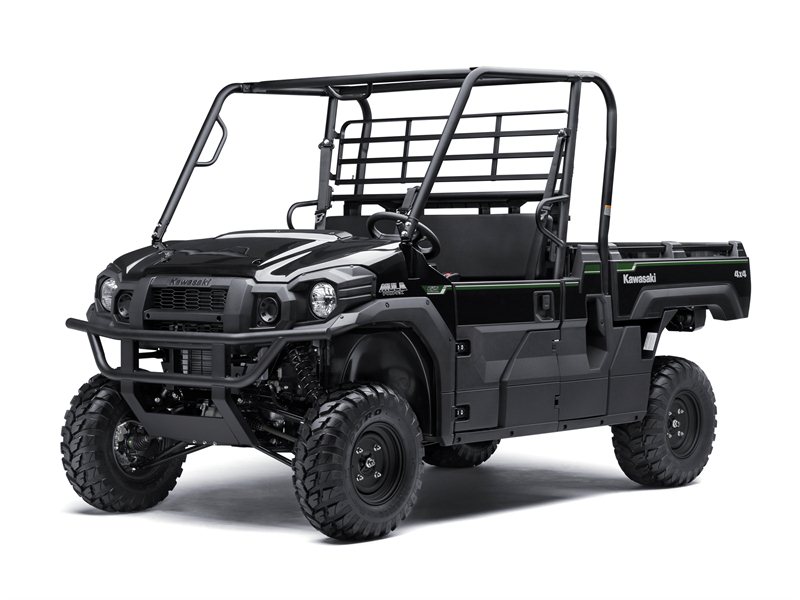

2016 KAWASAKI MULE PRO-FX EPS

Engine
4-stroke, 3-cylinder, DOHC, Liquid-cooled
Displacement
812cc
Maximum Torque
48 lb-ft @ 3,500rpm
Bore x Stroke
72 x 66.5mm
Compression Ratio
9.5:1
Fuel System
DFI w/34 mm throttle body
Ignition
Battery and coil
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable 4-wheel drive with dual-mode rear differential
Frame Type
Steel tube ladder type
Suspension / Wheel Travel
Double wishbone / 8.7” front, double wishbone / 8.5 / 8.7” rear
Tires, Front / Rear
26 x 9.00 R12 / 26 x 11.00 R12
Brakes
Hydraulic, dual 212mm front discs with two-piston calipers, dual 212mm discs with single-piston calipers, mechanical parking brake
Steering
Electric power assisted rack-and-pinion
Fuel Capacity
7.9 gallons
Curb Weight
1799.3 lb
Overall Length
133.3”
Overall Width
64”
Overall Height
77.4”
Wheelbase
92.3”
Ground Clearance
10.4”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
54.1 x 53.3 x 11”
Seating Capacity
3
Load Capacity
1,649 lb
Cargo Bed Capacity
1,000 lb (where permitted) 600 lb max capacity for California models
Towing Capacity
2,000 lb (where permitted)
Turning Radius
16ft
Alternator Output (max)
75 amp
Lighting
(2) 55/60W sealed-beam headlights, (2) LED auxiliary lights
Instruments
Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, warning indicators for 2WD/4WD, water temperature, oil pressure, fuel injection, CVT, neutral, reverse and parking indicators, seatbelt reminder lamps
Color Choices
Timberline Green, Super Black
MSRP
$12,999
Warranty
Kawasaki Strong 3 Year Limited Warranty
Kawasaki Protection Plus (optional)
12, 24 or 36 months

2016 KAWASAKI MULE PRO-FX EPS CAMO

Engine
4-stroke, 3-cylinder, DOHC, Liquid-cooled
Displacement
812cc
Maximum Torque
48 lb-ft @ 3,500rpm
Bore x Stroke
72 x 66.5mm
Compression Ratio
9.5:1
Fuel System
DFI w/34 mm throttle body
Ignition
Battery and coil
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable 4-wheel drive with dual-mode rear differential
Frame Type
Steel tube ladder type
Suspension / Wheel Travel
Double wishbone / 8.7” front, double wishbone / 8.5 / 8.7” rear
Tires, Front / Rear
26 x 9.00 R12 / 26 x 11.00 R12
Brakes
Hydraulic, dual 212mm front discs with two-piston calipers, dual 212mm discs with single-piston calipers, mechanical parking brake
Steering
Electric power assisted rack-and-pinion
Fuel Capacity
7.9 gallons
Curb Weight
1803.7 lb
Overall Length
133.3”
Overall Width
64”
Overall Height
77.4”
Wheelbase
92.3”
Ground Clearance
10.4”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
54.1 x 53.3 x 11”
Seating Capacity
3
Load Capacity
1,649 lb
Cargo Bed Capacity
1,000 lb (where permitted) 600 lb max capacity for California models
Towing Capacity
2,000 lb (where permitted)
Turning Radius
16ft
Alternator Output (max)
75 amp
Lighting
(2) 55/60W sealed-beam headlights, (2) LED auxiliary lights
Instruments
Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, warning indicators for 2WD/4WD, water temperature, oil pressure, fuel injection, CVT, neutral, reverse and parking indicators, seatbelt reminder lamps
Color Choices
Realtree Xtra Green Camo
MSRP
$14,199
Warranty
Kawasaki Strong 3 Year Limited Warranty
Kawasaki Protection Plus (optional)
12, 24 or 36 months

2016 KAWASAKI MULE PRO-FX

Engine
4-stroke, 3-cylinder, DOHC, Liquid-cooled
Displacement
812cc
Maximum Torque
48 lb-ft @ 3,500rpm
Bore x Stroke
72 x 66.5mm
Compression Ratio
9.5:1
Fuel System
DFI w/34 mm throttle body
Ignition
Battery and coil
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable 4-wheel drive with dual-mode rear differential
Frame Type
Steel tube ladder type
Suspension / Wheel Travel
Double wishbone / 8.7” front, double wishbone / 8.5 / 8.7” rear
Tires, Front / Rear
26 x 9.00 R12 / 26 x 11.00 R12
Brakes
Hydraulic, dual 212mm front discs with two-piston calipers, dual 212mm discs with single-piston calipers, mechanical parking brake
Steering
Rack-and-pinion
Fuel Capacity
7.9 gallons
Curb Weight
1786.1 lb
Overall Length
133.3”
Overall Width
64”
Overall Height
77.4”
Wheelbase
92.3”
Ground Clearance
10.4”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
54.1 x 53.3 x 11”
Seating Capacity
3
Load Capacity
1,649 lb
Cargo Bed Capacity
1,000 lb (where permitted) 600 lb max capacity for California models
Towing Capacity
2,000 lb (where permitted)
Turning Radius
16ft
Alternator Output (max)
75 amp
Lighting
(2) 55/60W sealed-beam headlights, (2) LED auxiliary lights
Instruments
Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, warning indicators for 2WD/4WD, water temperature, oil pressure, fuel injection, CVT, neutral, reverse and parking indicators, seatbelt reminder lamps
Color Choices
Super Black
MSRP
$11,999
Warranty
Kawasaki Strong 3 Year Limited Warranty
Kawasaki Protection Plus (optional)
12, 24 or 36 months

The 2016 Kawasaki MULE PRO-DX side x side will be available in December 2015 and Kawasaki Motors Corp., U.S.A. is able to reveal many details about its most capable diesel-powered MULE™ ever built. With its class-leading cargo bed size that will accept a standard-size pallet, the MULE PRO-DX side x side will surely be the most dependable and capable workhorse any job site, farm or construction zone will ever need.

Because it is a Kawasaki, the MULE PRO-DX side x side is backed by 130 years of industrial and engineering excellence that began with shipbuilding and continues with aircraft parts, robots, gas turbines and more. Like all Kawasaki products, the new MULE diesel models are built Kawasaki STRONG for ultimate durability, capability and comfort.

Other than the inclusion of a new 993cc three-cylinder diesel engine, the MULE PRO-DX is the same rugged and reliable vehicle as the MULE PRO-FX gas-powered version that was just announced. It is packed with a powerful combination of features, which means impressive hauling and towing capacity, unparalleled comfort thanks to independent four-wheel suspension and wide bench seating, selectable four-wheel drive traction with rear differential lock as well as a rugged chassis to soak up all kinds of punishment. In fact, the new MULE PRO-DX side x side will get your work done faster, allowing you to get more done each day.

SPECIAL FEATURES OF THE 2016 KAWASAKI MULE PRO-DX
•Robust 993cc 3-cylinder diesel engine with excellent torque and pulling ability
•55-amp alternator provides power to operate numerous accessories at once
•Largest cargo bed in its class accommodate a standard-size pallet and haul up to 1000 lb
•Tow up to 2000 lb with 2” receiver hitch
•Independent front and rear suspension, disc brakes, CVT, Electric Power Steering (EPS models only)
•Comfortable bench seating and automotive-type doors
•Cockpit features tilt steering, multi-function LCD display and multiple 12V outlets for charging devices
•Roll Over Protective Structure (ROPS) and three-point seatbelts for each occupant
•Non-EPS, EPS and EPS LE models available
•Kawasaki STRONG Three-Year Limited Factory Warranty
•More than 60 Kawasaki Genuine Accessories available

ENGINE & TRANSMISSION

The advantages of diesel power are widely known. From superior durability to improved economy and great pulling power, diesel engines are found on the work site, farm and where users value on-site fuel compatibility as well as the ruggedness and reliability of a diesel engine.

The 2016 Kawasaki MULE PRO-DX side x side uses a 993cc three-cylinder diesel engine. This provides great power and torque, which is ideal for hauling heavy loads, acceleration and hill ascent. In fact, these are the most capable Kawasaki MULE diesel models ever produced, meaning jobs can be tackled efficiently, with less time lost when covering distances and more work done quicker.

The lean-running diesel engine meets Tier 4 Final emissions regulations and uses an air pressure sensor to help prevent excess fuel delivery when operating at high altitude. It also has an electromagnetic fuel pump, which means manual priming is unnecessary if the operator should happen to run out of fuel. Furthermore, the vehicle has dual external filters, in addition to the main filter. The second filter separates oil and water, acting as a pre-filter and helps to contribute to overall engine reliability.

Since most MULE diesel models will spend significant time on the job site, the vehicle is equipped with a powerful 55-amp alternator, allowing numerous accessories to be powered at the same time, including the huge range of equipment offered by Kawasaki Genuine Accessories. This includes everything from winches to a plow, engine block heater, light bars and beacons, cab heater, audio system, dual battery kit and so much more.

MULE occupants can also power their personal electronic devices during the work week or on all-day adventures thanks to a pair of built-in 12-volt outlets. These can power everything from phones and tablets to GPS devices and other technology you can’t be without.

Transferring the engine’s performance to the ground is a specially tuned CVT transmission that was designed for the impressive diesel torque output. The CVT delivers smooth, usable power to the tires, maximizing traction and contributing to the MULE’s precise maneuvering. The CVT also provides natural engine braking to help when descending slopes, with consistent engine hold-back to increase driver confidence, especially when the vehicle is loaded.

The CVT is combined with an electrically selectable 2WD/4WD system that has a dual-mode rear differential. Intuitive dash-mounted switches allow the driver to instantly engage the systems, giving full control over the 4WD and locking rear differential.

The dual mode on the rear differential allows it to be fully locked for maximum traction, but it can minimize the vehicle’s impact on the terrain when unlocked.

Equipped with this system, the occupants’ workload can be completed quickly and efficiently, no matter the type of terrain or type of job being tackled.

HIGH CAPACITY HAULING & TOWING

The MULE PRO-DX boasts the largest cargo bed in its class. Measuring an impressive 54.1×53.3×11” it will easily accommodate a standard-size wooden pallet (48×40”), increasing the vehicle’s usefulness around the work site.

Built Kawasaki STRONG, the MULE PRO-DX side x side has a sturdy high-tensile, diamond-plate steel cargo floor with a maximum cargo capacity of up to 1000 lb. This enables the user to efficiently haul large loads including gear, tools, supplies, hay bales and so forth. What’s more, the cargo bed has a gas-assisted tilt feature that makes it easier to raise the empty bed to allow easy access to the engine compartment.

The cargo bed also has integrated steel cargo rails, allowing loads to be firmly secured using the abundance of Kawasaki Genuine Accessories that are available from the Kawasaki dealer network. So whether you’re on the work site, farm or heading to the lake with friends, the storage options of the MULE PRO-DX means you will get the job done, no matter what the day brings.

The tailgate is secured by two sturdy levers, which make it easy to open and close. The tailgate design also incorporates built-in cupholders, which come in handy when the tailgate is lowered. The cargo bed walls are designed with slots to accommodate Kawasaki Genuine Accessories’ cargo bed dividers. These allow cargo to be separated and stowed more securely for traversing difficult terrain.

If somebody needs to haul more than maximum load capacity of 1000 lb, the integrated 2” hitch receiver can enhance the versatility of the MULE PRO-DX. When equipped with an optional hitch, the vehicle is able to tow a substantial 2000 lb load with the pickup truck-style receiver, giving the new Kawasaki the ultimate versatility.

In order to successfully haul such large loads, hydraulic disc brakes use 212mm rotors on all four corners. They combine with the dependable engine braking system to produce effective stopping power anytime, anywhere.

Dual-piston calipers in the front and single-piston calipers in the rear give the driver strong yet progressive stopping power. An easily accessible mechanical rear parking brake was also included to keep the MULE PRO-DX securely in place when stopped.

SPACIOUS CABIN & EPS

With the tremendous durability and versatility of the MULE PRO-DX, all-day driving comfort was a high priority, allowing the driver and up to two passengers to get on with the job at hand. The cabin is particularly spacious, providing ample leg- and headroom, as well as a thick-cushioned bench seat for up to three full-size adult occupants.

All passengers are secured by conventional three-point seatbelts and automotive-style doors are standard to ease entry. The doors offer great protection from the elements and are far easier to use than nets, making the occupants’ experience significantly more enjoyable with the MULE PRO-DX.

For the driver’s convenience there is a thick grip steering wheel on the standard tilt-adjustable steering column, which provides up to 34-degrees of adjustment to ensure a comfortable fit. It can also be tilted out of the way to facilitate access to the cabin. All passengers have secure handholds.

The MULE PRO-DX EPS and MULE PRO-DX EPS LE models take full advantage of Kawasaki’s advanced speed-sensitive Electric Power Steering (EPS) system, which was highly praised during its introduction on the MULE PRO-FXT side x side last year. It considerably reduces steering effort, but ensures the steering has optimal feedback as speed increases, enhancing handling. The EPS helps to reduce steering kickback on rough terrain, reducing driver fatigue. Furthermore, it helps the driver enjoy a tight 16ft turning radius.

The EPS system works best when you need it most: at extremely slow speed and when stopped. Turning the wheel causes a signal to be sent to the EPS control module, initiating assistance. The ECU uses input from a vehicle speed sensor and steering torque sensor to determine the amount of steering assistance required from the system’s electric motor. At slow speed or when stopped, assistance is greatest, while assistance is reduced as vehicle speed increases to ensure stable handling.

INDEPENDENT SUSPENSION

Another element of the MULE PRO-FXT that was universally applauded was its front and rear independent suspension. By soaking up the bumps on the MULE PRO-DX side x side it provides excellent comfort, and by ensuring the tires remain in contact with the ground thanks to a generous 8.7” (left rear is 8.5”) suspension travel, traction also benefits.

The suspension utilizes twin-tube, preload-adjustable shocks, with large diameter tubing for the A-arm design, ensuring Kawasaki’s legendary reputation for durability is maintained. Ample ground clearance (TBA, 10” minimum) also gives the driver confidence that the lower chassis will clear rocks and large obstacles. The MULE PRO-DX also delivers in the key areas such as an overall length of 133.3” and a relatively compact 92.3” wheelbase. The shorter wheelbase and high ground clearance provide a favorable breakover angle of 26-degrees to reduce the chance of bottoming-out when cresting a ridge or clearing an obstacle. The high 78-degree approach and 64-degree departure angles further contribute to the MULE PRO-DX side x side’s off-road performance. The short overhangs reduce the chance of hitting the front bumper or scraping the tail when climbing and descending steep slopes.

The suspension uses rubber bushings at the attachment points to enhance durability and reduce service intervals. The MULE PRO-DX engine is also rubber-mounted to reduce vibration and contribute to a high quality, comfortable ride.

DURABILITY – KAWASAKI STRONG

With a background in the construction of ships, aircraft and earth-moving equipment, Kawasaki Heavy Industries, Ltd brings the same engineering disciplines to all its products, especially its side x side vehicles. So the MULE PRO-DX side x side has a solid welded frame that emphasizes lateral and torsional rigidity for both durability as well as great handling. By eliminating flex, the ladder-type frame is able to provide good chassis response and traction.

A Roll Over Protective Structure (ROPS) further increases stiffness of the entire chassis, giving the driver superior handling and driving characteristics, while also ensuring long-lasting durability and occupant security.

It’s not just the passengers that are protected – the MULE PRO-DX has integrated inner wheel wells because Kawasaki wanted to keep mud and debris out of the engine compartment, protecting its vital components and meaning the operator can spend less time cleaning the vehicle. The electrical equipment is also mounted high in the vehicle to keep it away from water, and the fuel tank is centrally mounted, away from the wheels to reduce the risk of damage from debris thrown up by the tires. Additionally, steel side guards add protection from side impacts.

Another thoughtful aspect is the engine and hood maintenance covers that provide quick and easy access to the key service areas on the vehicle. They allow the user to check the oil level, service the air cleaner, check fuses as well as access the battery.

Potential buyers will be happy to see the steel front bumper and the high-tensile steel cargo bed. These crucial parts provide greater durability and strength when compared to the plastic alternatives commonly offered by its competitors.

Of course, with the MULE PRO-DX is built tough, it is naturally backed by the industry-leading Kawasaki STRONG 36-month limited factory warranty.

STORAGE

Occupants will appreciate the storage space under the front seat. This allows users to securely store their equipment and gear in the optional Kawasaki Genuine Accessories bin.

In addition, there is a handy glovebox as well as three dashboard pockets – with the center pocket large enough to accommodate the Kawasaki Genuine Accessories audio system. There are two cupholders built into the bodywork in front of the dashboard.

DASHBOARD

The interior features multi-function LCD instrumentation. It provides a large, intuitive, easy-to-read display that includes an array of information such as digital speedometer, odometer and hour meter, fuel gauge, dual trip meters, water temp, 2WD/4WD operation, clock and parking brake indicator to keep the driver fully informed at a glance. There is a light on the diff lock switch to indicate when it is selected. A new feature for the diesel models is a glowplug indicator to let the driver know when the engine is ready to start. There are also two DC power outlets provided for convenient access to charge accessories and gadgets.

POWERFUL LIGHTING

The same high-power alternator responsible for charging smartphones and devices will also provide excellent visibility after dark and in poor weather conditions by powering the 55/60 watt Hi/Low halogen headlights that come as standard equipment on all models.

Additionally, the EPS LE model in the MULE PRO-DX range gets high-intensity, auxiliary LED headlights with Hi/Low settings for even greater illumination (available as accessories on other models).

LED lights are specified on most high-end machinery for their extremely bright output, although Kawasaki’s engineers were also interested in the extended durability and low current draw that LEDs offer.

ONE MULE, THREE MODELS

The MULE PRO-DX comes in three models, each packed with a host of Kawasaki STRONG features.

The MULE PRO-DX non-EPS model comes standard with steel wheels, a tilt steering wheel and two DC outlets in the cab. It is available in Super Black.

The second variation in the MULE PRO-DX lineup is the EPS model. This comes standard with the same amenities as the non-EPS but, as its name suggests, with the addition of Electric Power Steering (EPS). This model is available in Timberline Green and Super Black, with a contrasting graphic along the doors and cargo bed.

Next in the range is the desirable MULE PRO-DX EPS LE model. Equipped with all the aforementioned equipment, this variation comes standard with a number of additional upgrades over the EPS model, including LED auxiliary headlights and a composite sun top. Color options are Timberline Green and Dark Royal Red with contrasting graphics along the doors and cargo bed.

AVAILABILITY

The 2016 Kawasaki MULE PRO-DX side x side will be available from the Kawasaki Motors Corp., U.S.A. network of nationwide retailers in December 2015.

ACCESSORIES

Owners of the new Kawasaki MULE PRO-DX will enjoy the opportunity to accessorize and specialize the vehicle to accentuate their individual needs and style. Owners can take advantage of more than 60 Kawasaki Genuine Accessories, such as a Kawasaki-certified WARN® winch package, for example. You could opt for a WARN® ProVantage™ Plow System to tackle winter storms. In that case, you might also choose to provide extra protection for the vehicle, equipping it with skid plates. New for the MULE diesel models is an engine block heater for vehicles working in temperatures below -4˚F.

To protect the occupants from the weather, Kawasaki offers everything from complete hard and soft cabs, to full- and half windshields in glass or polycarbonate, as well as plastic roof and rear panel. All these Kawasaki Genuine Accessories were developed alongside the vehicle, for the perfect installation, fit and finish.

MULE PRO-DX side x side owners can also choose from accessories such as an audio system, cab heater, bed extender, cargo divider. There is also a rearview mirror option, cargo bed mat, hydraulic bed lift, a full vehicle cover and so much more.

As an added bonus, the industry-leading Kawasaki STRONG Three-Year Warranty remains intact after the purchase and installation of any of these accessories.

Consumers interested to see how their new MULE PRO-DX side x side will look with Kawasaki Genuine Accessories in place will be able to build their vehicle online, adding their favorite accessories and seeing them in place. They then have the opportunity to print their custom build list and take it to their local Kawasaki dealer to purchase the exact vehicle specification they designed. Visit www.kawasaki.com for full details.

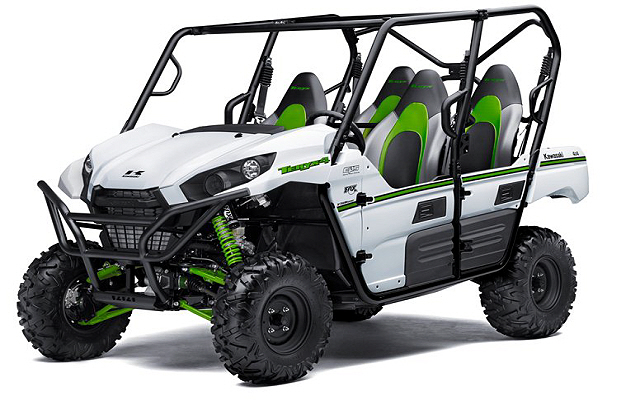

2016 KAWASAKI TERYX4

The 2016 Kawasaki Teryx4 side x side boasts new styling, improved handling and more amenities for this fun and versatile 4-passenger off-road vehicle

The Kawasaki Teryx4 vehicle is the pinnacle of side x side performance and style, especially with its new attention-grabbing front bumper, hood and headlight design. Able to accommodate four full-size adults, the side x side can provide exciting and reliable off-road enjoyment for the whole family.

The 2016 Teryx4 side x side leads the way with performance, power and improved handling thanks to revised settings for its Fox Podium 2.0 shocks, allowing Kawasaki to set the benchmark in its class.

The entire family will be able to enjoy the comfort and smooth ride plus a long list of standard features that will make backwoods excursions more fun than ever. The sporty handling and trail-taming comfort is matched by a durable and powerful V-twin engine, which can drive all four wheels with precision through its Continuously Variable Transmission (CVT). The driver is able to navigate all types of terrain with ease thanks to the cutting-edge standard Electric Power Steering (EPS) system that provides light, low-effort steering and now includes a thicker steering wheel and tilt steering column for a great fit and sporty feel. Add a Kawasaki STRONG three-year limited factory warranty and it is easy to see why the 2016 Kawasaki Teryx4 side x side is an unbeatable package.

SPECIAL FEATURES OF THE 2016 KAWASAKI TERYX4

• Standard Kawasaki STRONG three-year limited factory warranty

POWERTRAIN

The character-filled, purpose-built 90-degree V-twin engine is revered for its exhaust note, stump-pulling torque and amazing flexibility. The 783cc engine generates its power and torque where you need it most – in the low- and mid-range powerband, making short work of scrambling up hills, slogging through mud or crawling over rocks. The Teryx4 side x side also delivers great fuel efficiency, providing ample range between fuel stops.

Transferring all that torque to the ground is a Continuously Variable Transmission (CVT) with a centrifugal clutch assembly, and a three-mode electronically selectable four-wheel drive system that allows access to either 2WD (light steering, great handling), 4WD or 4WD + Front Differential Lock. The latter helps to provide optimum traction by simply rotating a dash-mounted switch.

The CVT is known for its quick response and direct engine “feel” in sportier riding situations, and its unique engine braking ability can increase driver confidence on descents, while turning and in rough conditions.

So whether it’s climbing a rocky trail, crossing a stream or just hauling down a wide-open track with three friends, the Teryx4 side x side has the ideal drivetrain mode to handle it.

ELECTRIC POWER STEERING

Easy, low-effort and precise steering are hallmarks of the Teryx4 side x side’s standard Electric Power Steering (EPS) system.

The Showa-built system eliminates the traditional power-steering pump found on most of the competition, so steering inputs don’t rob engine power, and it is only active when the engine is running, so there’s minimal battery drain. Input from vehicle speed and torque sensors determine the amount of steering assistance – more during slow-speed use, and less as speeds increase, just like a state-of-the-art sports car. EPS offers additional damping, especially on rough surfaces, resulting in reduced steering kickback and bump-steer.

CHASSIS

The durable Double-X frame construction of the Teryx4 side x side takes technical terrain in its stride. The rigid, square tube chassis effectively combats flex to help provide superior handling over rough ground.

This stout frame was designed using detailed computer analysis and plenty of off-road testing to create the Double-X design. It features two X-shaped crossmembers bridging the frame’s box structures from corner-to-corner for maximum strength and optimum durability.

The extremely tight 16.7ft turning radius makes maneuvering in close quarters a cinch – a real benefit over some of the competition that can be forced to make multi-point turns in the same amount of space.

The frame is also reinforced by the Roll-Over Protective Structure (ROPS), which extends all the way out to the edges of the bodywork to maximize cockpit space and help shield the chassis and bodywork.

The Teryx4 side x side has underbody engine guards that offer an added measure of protection by shielding vital components; their smooth reinforced surfaces act as a skid plate when it might be necessary to grind over the occasional obstacle.

This impressive chassis package is further enhanced with a wide-track/wide-body design, which contributes to superb handling characteristics. The wide track helps resist body roll during cornering and boosts its ability to navigate rough terrain. Mid-engine placement also helps by centralizing the vehicle’s center of mass, which reduces the turning inertia and promotes fluid direction changes.

Large 26” Maxxis Bighorn 2.0 tires offer the type of ride comfort, control and traction you would expect from a Teryx4 side x side. Their construction and tread design helps maximize forward traction, while optimizing driver feedback for cornering.

The Teryx4 side x side has an 85.6” wheelbase, contributing to its tight turning radius and overall agility. The vehicle also offers a substantial 11.2” of ground clearance, helping to prevent it from high centering when cresting a ridge or obstacle. The high approach and departure angles (79- and 65-degrees, respectively) also reduce the possibility of fouling the front bumper when approaching a steep slope, or scraping the tail when exiting.

SUSPENSION & BRAKING

The independent suspension on the Teryx4 side x side incorporates one of the best names in the high-performance suspension business: FOX. This means that stout steel A-arms at all four corners are mated to adjustable FOX Podium 2.0 remote reservoir coilover shocks that offer 8” of plush travel up front and 8.3” out back, giving the Teryx4 side x side plenty of trail-taming comfort. And new settings for the Fox shocks mean the vehicle has even more composure at high and low speeds.

Kawasaki engineers collaborated with FOX to fit the Teryx4 side x side with the ultimate high-performance FOX Podium 2.0 shocks, which are adjustable for spring preload and 24-way compression damping, to tailor the ride to the terrain or the rider’s preference.

Kawasaki and FOX incorporated a dual-mode design ideology so the adjustable FOX Podium 2.0 coilover shocks provide everything from cruising comfort with four passengers and a full cargo bed, to sport-style bump absorption when driven solo. It’s a difficult combination to get right, but the FOX Podium 2.0 shocks get the job done by maintaining consistent, progressive and fade-free damping in all driving conditions.

With the performance and handling potential of the Teryx4 side x side, consistent brake performance is essential, and the Teryx4 side x side delivers with high-performance hydraulic discs up front. These use 200mm rotors gripped by dual-piston calipers for exceptional feel and stopping power. The brakes are recessed within the wheels to help keep them free from dirt, rocks, water and debris, while sturdy steel-braided brake lines help keep the pedal feeling crisp and progressive.

At the rear, Kawasaki employs its unique sealed internal wet brake, which feature internal components that are completely sealed from mud, water, dust and debris. The result is powerful and ultra-reliable braking performance whether descending hills or running on trails, wet or dry.

HAULING & TOWING

The Teryx4 side x side excels at all sorts of tasks, from hauling family members to towing. Its 17.9 x 47.6”, 250 lb capacity cargo box is 8.7” deep. The cargo bed has a flat bottom that is big enough to hold a large cooler, several spare fuel cans or other essentials.

The bed has the ability to add Kawasaki’s optional tool snap-mount system, which allows quick-mounting of Kawasaki Genuine Accessories and/or tools to the bed rails. Four tie-down loops also help secure the cargo.

The Teryx4 side x side also features a latching tailgate, which can be removed without requiring tools for greater capacity. The tailgate also features molded drink holders for added convenience.

A 2” hitch receiver is standard equipment. This allows the Teryx4 side x side to tow up to a substantial 1,300 lb once equipped with the optional draw bar.

CONVENIENCE

Convenience features on the 2016 Kawasaki Teryx4 side x side include three DC power outlets (two up front and one in the rear) providing up to 120 watts of peak electrical power. Almost eight gallons of fuel capacity and impressive fuel economy mean the Teryx4 has substantial range, enough for a long day on the trail. There’s also a handy cab roof (sun top) to maximize comfort (standard on the Teryx4 LE and Camo models), plus a conveniently located beverage holder for each occupant.

New this year is a restyled dashboard layout that incorporates four accessory switches, allowing Teryx4 side x side owners to operate their chosen Kawasaki Genuine Accessories, such as a winch, auxiliary LED lighting, etc. The dashboard is also able to accommodate the Kawasaki Genuine Accessories audio system to provide music or news throughout the day. A number of convenient storage pockets were also incorporated into the new dash design to increase its utility.

STYLING

The bold new styling of the Teryx4 side x side perfectly matches its performance. It includes a new hood and scratch-resistant front bumper. Along with its angular fenders, the Teryx4 side x side has a look that says “sporty” and “functional” at the same time. To prove the point, the aggressive-looking hinged hood opens for ease of maintenance and is finished in automotive-quality paint.

New lightweight polished 14” cast aluminum wheels on the Teryx4 LE model could garner a fair share of attention at any custom car show, but it doesn’t stop there. The Teryx4 LE also features a strong tubular-steel front brush guard, while both the Teryx4 LE and Teryx4 Camo models now receive four new high-intensity LED headlamps that are engineered to keep the path illuminated long after sunset.

Textured paint on the brush guards and ROPS cage help keep the Teryx4 LE side x side looking sharp for a good long time.

INTERIOR AMENITIES

All four occupants will enjoy riding in the Teryx4 side x side during a long day, because it’s one of the most comfortable vehicle in its class.

Its roomy interior gives the driver and passengers plenty of hip, shoulder and legroom. Three-tone high-backed bucket seats feature high-quality cushioning and cold-resistant seat material for all-day plushness. The adjustable seats eliminate the need for a headrest and feature wraparound ergonomics to hold driver and passengers firmly in place.

A new feature is the driver’s seat can now be adjusted without the use of tools, allowing different sized drivers to comfortably get behind the wheel. And when the going gets rough, automotive-style three-point seatbelts offer a high degree of security, keeping the driver and passengers in place. Shock-absorbing comfort mounts and an anti-cinch feature on the seatbelts also help prevent over-tightening when the belts lock during sudden deceleration (or when the tilt sensor is activated).

Unlike some of its competitors, the Teryx4 side x side features premium factory-designed secure latching, automotive-style doors that are easy to use, look good and offer a high level of mud protection.

The instrumentation includes a multi-function electronic display that provides an array of useful information: speedometer, fuel gauge, odometer and hour meter, clock and dual trip meters. There are also indicator lights for the 2WD/4WD, front differential, parking brake, water temp and a fuel injection warning plus a reverse indicator – everything you need to know at a glance.

ONE TERYX4, THREE MODELS

The four-seat 2016 Kawasaki Teryx4 side x side is available in three different levels of specification. All pack the same combination of powerful, reliable engine, selectable all-wheel drive traction, durable, tough chassis, sporty suspension and all-round versatility and fun.

The first model is the 2016 Kawasaki Teryx4 EPS side x side, which is equipped with the advanced Electric Power Steering (EPS) to help the driver maneuver at low speed and reduce terrain kickback as the speed increases. The Teryx4 EPS model is available in Bright White, which looks great on the aggressive lines of this sporty vehicle.

The 2016 Teryx4 LE model incorporates everything on the EPS model, including its Electric Power Steering. It adds new lightweight 14” cast aluminum wheels for extra style. These are fitted with some of the largest tires available in the side x side category and provide outstanding rough terrain performance, obstacle clearance and cornering confidence.

In addition, the Teryx4 LE model receives four powerful LED headlights and a hard sun top to protect the occupants from the hot sun or falling rain. This vehicle can be purchased in a choice of Candy Lime Green paint, Metallic Flat Raw Graystone or Candy Persimmon Red.

Finally, there is the 2016 Teryx4 Camo model, which is equipped with standard EPS, four powerful LED headlights and a hard sun top. As its name suggests, the Camo model is finished in the authentic Realtree Xtra Green Camo pattern that makes it ideal for hunters, photographers, backwoodsmen or anybody who wants to maintain a low profile while off-road.

KAWASAKI STRONG 3-YEAR LIMITED WARRANTY

When you consider all the features of the 2016 Teryx4 side x side, it’s clear there is no competition for its outstanding excellence. Yet Kawasaki did not stop with simply building the most capable, comfortable and durable side x side in the world; they backed it up with the Kawasaki STRONG 3-Year Limited Warranty!

It’s well known that the premium engineering on the Teryx4 side x side makes it a long-lasting and dependable product. That peace of mind is further enhanced by factory-backed support for a full three years on every 2016 Teryx4 side x side!

Strength. Power. Comfort. Convenience. Hauling and towing ability. Reliability. The Teryx4 family has been at the pinnacle of off-road fun and function since its inception, and the 2016 model ushers in a new era of Kawasaki side x side performance, reliability and comfort!

ACCESSORIES

A large selection of Kawasaki Genuine Accessories is available through authorized Kawasaki dealers across the country. As with all off-highway vehicle recreation, Kawasaki encourages side x side users to drive responsibly and to respect the environment.

All Kawasaki Genuine Accessories are developed in conjunction with the vehicle to ensure a perfect fit and functionality. They include items such as a snowplow and several WARN winches. There is a fabric cab enclosure, fabric, plastic and aluminum roofs as well as full-length fabric doors. There is a cargo box system that secures to the cargo bed using special clamps. Teryx4 side x side owners can also purchase an audio system, auxiliary lighting, tow hitch balls, a full and half windshield as well as gun cases and a mounting system. To protect Teryx4 vehicles off-road, there is a full complement of underbody guards and skid plates from front to rear, as well as light guards, a rear bumper, fender flares and more.

2016 Kawasaki Teryx4 EPS LE Specifications

Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Displacement
783cc
Maximum Torque
47 lb-ft @ 5500rpm
Bore x Stroke
85 x 69mm
Compression Ratio
10.7:1
Starting System
Electric
Fuel System
DFI with two 36mm Mikuni throttle bodies
Ignition
TCBI with electronic advance
Transmission
Continuously variable belt-drive transmission with high and low range, reverse, and a wet centrifugal clutch
Final Drive
Selectable 4-wheel drive with locking front differential, shaft
Frame
Steel Tube Double-X Reinforcement
Front Suspension / Wheel Travel
Dual A-arm with a piggyback reservoir coil-over FOX Podium 2.0 shocks, with adjustable spring preload and 24-way compression damping / 8”
Rear Suspension / Wheel Travel
Independent Rear Suspension (IRS) with a piggyback reservoir coil-over Fox Podium shocks, with adjustable spring preload and 24-way compression damping / 8.3”
Tires, Front
Maxxis 27×9-14
Tires, Rear
Maxxis 27×11-14
Brakes, Front
Dual hydraulic discs with two-piston calipers
Brakes, Rear
Sealed, oil-bathed, multi-disc
Steering
Rack & Pinion, with EPS
Fuel Capacity
7.9 gallons
Curb Weight
1617.7 lb
Overall Length
125.4”
Overall Width
61.6”
Overall Height
79.7”
Wheelbase
85.6”
Ground Clearance
11.2”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
17.9 x 47.6 x 8.7”
Cargo Bed Load Capacity
249 lb
Load Capacity
1109 lb
Seating Capacity
4
Towing Capacity
1,300 lb
Turning Radius
16.7ft
Lighting
(4) 20.4/10.2W LED headlights, (2) 0.24W LED taillights, 1.8W LED stoplight
Instruments
Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators
Color Choices
Candy Lime Green, Metallic Flat Raw Graystone, Candy Persimmon Red
MSRP
$16,999
Warranty
Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus (Optional)
12, 24 or 36 months

2016 Kawasaki Teryx4 Camo Specifications

Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Displacement
783cc
Maximum Torque
47 lb-ft @ 5500rpm
Bore x Stroke
85 x 69mm
Compression Ratio
10.7:1
Starting System
Electric
Fuel System
DFI with two 36mm Mikuni throttle bodies
Ignition
TCBI with electronic advance
Transmission
Continuously variable belt-drive transmission with high and low range, reverse, and a wet centrifugal clutch
Final Drive
Selectable 4-wheel drive with locking front differential, shaft
Frame
Steel Tube Double-X Reinforcement
Front Suspension / Wheel Travel
Dual A-arm with a piggyback reservoir coil-over FOX Podium 2.0 shocks, with adjustable spring preload and 24-way compression damping / 8”
Rear Suspension / Wheel Travel
Independent Rear Suspension (IRS) with a piggyback reservoir coil-over Fox Podium shocks, with adjustable spring preload and 24-way compression damping / 8.3”
Tires, Front
Maxxis 26×9-12
Tires, Rear
Maxxis 26×11-12
Brakes, Front
Dual hydraulic discs with two-piston calipers
Brakes, Rear
Sealed, oil-bathed, multi-disc
Steering
Rack & Pinion, with EPS
Fuel Capacity
7.9 gallons
Curb Weight
1611.1 lb
Overall Length
125.4”
Overall Width
61.6”
Overall Height
79.7”
Wheelbase
85.6”
Ground Clearance
11.2”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
17.9 x 47.6 x 8.7”
Cargo Bed Load Capacity
249 lb
Load Capacity
1109 lb
Seating Capacity
4
Towing Capacity
1,300 lb
Turning Radius
16.7ft
Lighting
(4) 20.4/10.2W LED headlights, (2) 0.24W LED taillights, 1.8W LED stoplight
Instruments
Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators
Color Choices
Realtree Xtra Green Camo
MSRP
$16,299
Warranty
Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus (Optional)
12, 24 or 36 months

2016 Kawasaki Teryx4 EPS Specifications

Engine
4-stroke, 2-cylinder, OHV, 90° V Liquid-cooled
Displacement
783cc
Maximum Torque
47 lb-ft @ 5500rpm
Bore x Stroke
85 x 69mm
Compression Ratio
10.7:1
Starting System
Electric
Fuel System
DFI with two 36mm Mikuni throttle bodies
Ignition
TCBI with electronic advance
Transmission
Continuously variable belt-drive transmission with high and low range, reverse, and a wet centrifugal clutch
Final Drive
Selectable 4-wheel drive with locking front differential, shaft
Frame
Steel Tube Double-X Reinforcement
Front Suspension / Wheel Travel
Dual A-arm with a piggyback reservoir coil-over FOX Podium 2.0 shocks, with adjustable spring preload and 24-way compression damping / 8”
Rear Suspension / Wheel Travel
Independent Rear Suspension (IRS) with a piggyback reservoir coil-over Fox Podium shocks, with adjustable spring preload and 24-way compression damping / 8.3”
Tires, Front
Maxxis 26×9-12
Tires, Rear
Maxxis 26×11-12
Brakes, Front
Dual hydraulic discs with two-piston calipers
Brakes, Rear
Sealed, oil-bathed, multi-disc
Steering
Rack & Pinion, with EPS
Fuel Capacity
7.9 gallons
Curb Weight
1593.5 lb
Overall Length
125.4”
Overall Width
61.6”
Overall Height
77.8”
Wheelbase
85.6”
Ground Clearance
11.2”
Roll Over Protective Structure (ROPS)
ROPS meets the performance requirements of ISO 3471
Cargo Bed Dimensions (LxWxH)
17.9 x 47.6 x 8.7”
Cargo Bed Load Capacity
249 lb
Load Capacity
1109 lb
Seating Capacity
4
Towing Capacity
1,300 lb
Turning Radius
16.7ft
Lighting
(2) 35W headlights, (2) 0.24W taillights, 1.8W LED stoplight
Instruments
Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators
Color Choices
Bright White
MSRP
$15,799
Warranty
Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus (Optional)
12, 24 or 36 months
