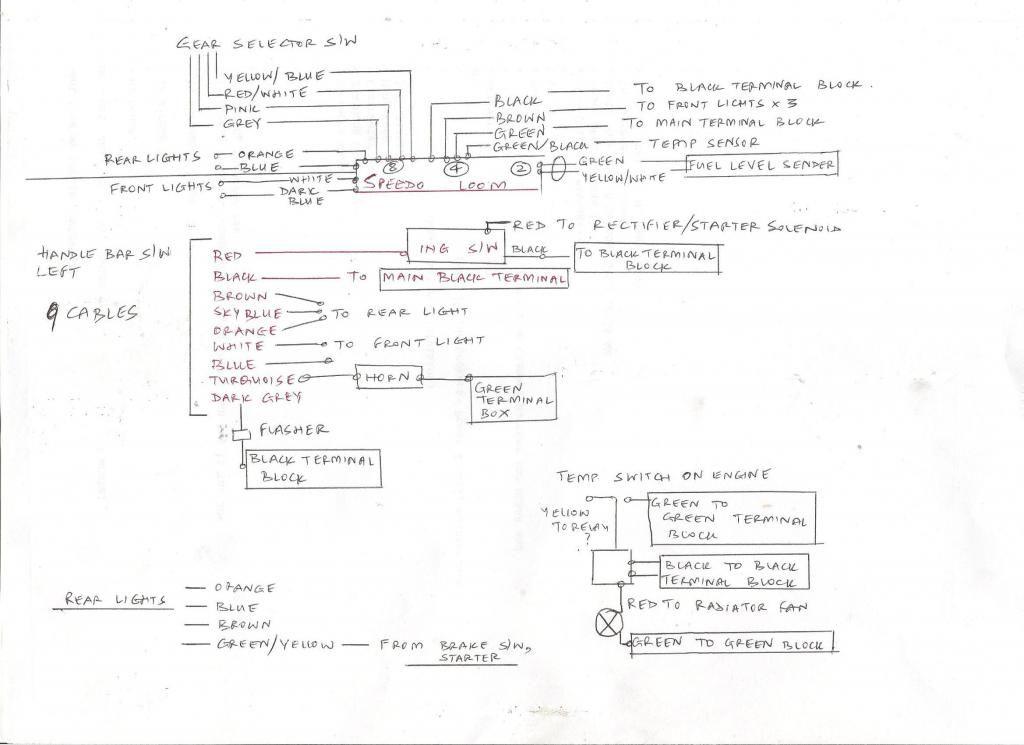

genwiringatv500 001. layout of the general wiring of a 500cc ATV. I personally feel that the wiring of the radiator circuit seems to be flawed as it does not show any Positive feed to the radiator fan.
