ARGO Begins Production on Sasquatch XTX
XTV = Xtreme Terrain Vehicle.
ARGO has been around since the beginning – manufacturing multi-wheel-drive amphibious off-road adventure vehicles even back when the world got a glimpse of the first 3-wheeler coming out of Japan and when trikes evolved into four-wheelers and utility carts morphed into side-by-sides.
More recently they supplemented their own line with quads and SxS lines but it was their acquisition of the Russian-designed Sherp that surely had the most to do with their latest creation that is now in production.
Check out the Sasquatch XTX, the latest Xtreme Terrain Vehicle from ARGO designed to go where others can’t. The amphibious ARGO Sasquatch XTX is built for those who work off the grid — in places far away from urban concrete jungles. The sheer power, amazing comfort and the ability to traverse to rugged destinations many think are impossible to reach makes the ARGO Sasquatch XTX in a class of its own.
CAB
The ARGO Sasquatch XTX has perfected what a high-quality interior in an amphibious off-road vehicle should be. This premium, ROPS 3471 Certified, QX4 Crew Cab delivers an ultra-quiet environment with full panoramic viewing and an ergonomically designed interior.
DISPLAY
Traveling through the bowels to Earth’s darkest, wettest, and most extreme areas calls for the latest technology to help you reach your destination safely. So, feast your eyes on the new 12” color ARGO Infotainment Touch Display, complete with day or nighttime viewing modes and loaded with integrated features to provide real-time vehicle performance information.
DRIVETRAIN

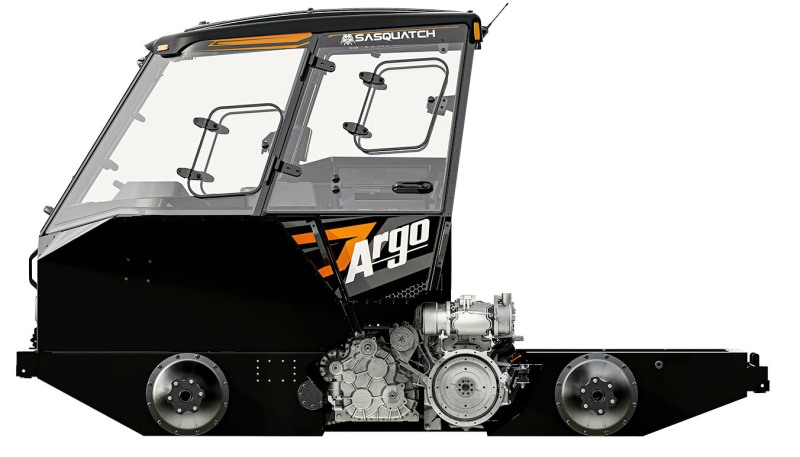

At the heart of the ARGO Sasquatch XTX is the HDT Automatic e-Steer transmission, designed by parent company, ODG, coupled to the burly Doosan three-cylinder 1.8 L high-output turbo diesel engine, built to adeptly power you on land or water. Wherever you go, this industry-leading drivetrain is designed to get you through the nastiest, murkiest, most desolate, hostile sludge. Not to mention the tough stuff, too.
TIRES
The all-new ARGO XT328 71” tires are larger than life. These patent-pending tires have been put through countless extreme terrain tests to swim, climb, and perform like no other amphibious off-road vehicle tire. With a unique cupped-to-flat tread pattern, the ARGO XT328 tires provide superior water propulsion, excellent grip for sidehilling, and extreme traction for overcoming Earth’s treacherous terrain.
FLEXBOX
The durable Sasquatch XTX FlexBox is built to handle heavy gear and equipment with multiple tie-down capabilities and additional sealed storage. Made from durable construction materials, the Flexbox has a sealed bed floor with two drain plugs and boasts 57.5 cubic feet of total storage in-box capacity. To address all your cargo needs, they’ve added the SquatchBox, providing an additional 3.8 cubic feet of sealed storage built into the side of the FlexBox. This is how you take hard work out into the world.
SPECIFICATIONS
ENGINE MAKE DOOSAN
DISPLACEMENT 1.8 L TURBO
FUEL TYPE DIESEL
CYLINDER 3
EMISSION STANDARDS EPA, TIER 4 FINAL
DOC DOC
COOLING SYSTEM LIQUID COOLING W/ ELECTRIC CONTROLLED VARIABLE SPEED FAN
TORQUE – MAX 200 NM
FUEL CONSUMPTION 1.3 – 2.2 GPH (5-8 LPH)
VOLTAGE 12 V
ALTERNATOR CAPACITY 140 AMP
STARTING ELECTRIC
BATTERY TYPE – MAIN/BACKUP LEAD ACID
TRANSMISSION TYPE HDT AUTOMATIC WITH E-STEER
PRIMARY DRIVE CONTINUOUSLY VARIABLE TRANSMISSION
FINAL DRIVE ENCLOSED GEARCASE
STEERING STEER BY WIRE
PAYLOAD 2,645 LBS (1200 KG)
PEOPLE CAPACITY 4
MAX CLIMB/DESCEND GRADE 35 DEGREES
MAX SIDEHILL GRADE 30 DEGREES
OVERALL LENGTH 157″ (3,988 MM)
OVERALL WIDTH 101“ (2,570 MM)
OVERALL HEIGHT 113“ (2,882 MM)
GROUND CLEARANCE 26“ (660 MM)
WHEELBASE 86“ (2,200 MM)
TOWING CAPACITY 5,180 LBS (2,350 KG) FRONT/REAR
TONGUE WEIGHT 330 LBS (150 KG) FRONT/REAR
DRY WEIGHT 5,295 LBS. (2,402 KG)
FUEL TANK CAPACITY 26.5 GAL (100 L)
AUXILIARY FUEL CAPACITY NA
INTERIOR VOLUME – OVERALL 260 FT3 (7.4 M3)
REAR CARGO BOX 57.5 SQ. FT
REAR CARGO BOX – SIDE STORAGE 3.8 SQ. FT
SPEED – LAND 25 MPH (40 KM/H)
SPEED – WATER 4 MPH (6 KM/H)
SUSPENSION ADJUSTABLE PNEUMATIC CIRCULATING TIRES
BRAKES HYDRAULIC DISK BRAKE
PARKING BRAKES HANDBRAKE
TIRE SIZE XT 328 – 71″X23″-25″
WHEELS STEEL WITH BEADLOCKS
GROUND PRESSURE 0.9 – 2.1 PSI (0.07 – 0.15 KG/CM2)
PRESSURE CONTROL ELECTRONIC CONTROLLED, ON THE MOVE, FRESH AIR PUMP
CABIN PREMIUM
FRAME HIGH STRENGTH POWDER COATED STEEL
ROPS (CERTIFICATION) FULL ROPS (ISO 3471)
FRONT SEATS – 2 FRONT FACING STANDARD WITH 3 POINT SEATBELTS
REAR SEATS – 2 FRONT FACING STANDARD WITH 3 POINT SEATBELTS
REAR SEATS – 4 FRONT FACING NA
REAR SEATS – 6 SIDE FACING NA
INSTRUMENTATION CONTROL 12″ DIGITAL INFOTAINMENT DISPLAY
REVIEW CAMERA STANDARD
HEATER FULL CAB INTEGRATION
AIR CONDITIONER FULL CAB INTEGRATION
HEADLIGHTS LED – HI/LO BEAM
MARKING LIGHTS 4 CORNER SAFETY CAB LIGHTS
LIGHTBARS (FRONT, REAR, SIDE) OPTIONAL
REAR CARGO BOX LIGHT HIGH OUTPUT LED
BUMPERS FRONT AND REAR
HITCH 2″ RECEIVER – FRONT AND REAR
WINCH OPTIONAL 6,000 LB CARRY ON W/ 2″ RECEIVER MOUNT PLATE
BILGE PUMP STANDARD AUTOMATIC AND MANUAL CONTROL
GLOVE BOX NA
CUP HOLDERS STANDARD
STORAGE BOXES – UNDER FLOOR NA
STORAGE LOCKERS – 2 PCS NA
MIRRORS OPTIONAL
FRONT WINDSHIELD WIPER STANDARD WASHER RESERVOIR
SIDE WINDOWS TIP OUT, LOCKABLE, SIDE 2 PCS
USB / USB-C PORTS FRONT AND REAR CAB
12 V PORT OPTIONAL
120 V PORT 1 LOCATION ON 120 V AC POWER SUPPLY
WARRANTY 1 YEAR OR 1,000 OPERATION HOURS
COLORS BLACK/ORANGE OR BLACK/YELLOW
