Electrical issue & cut connecter

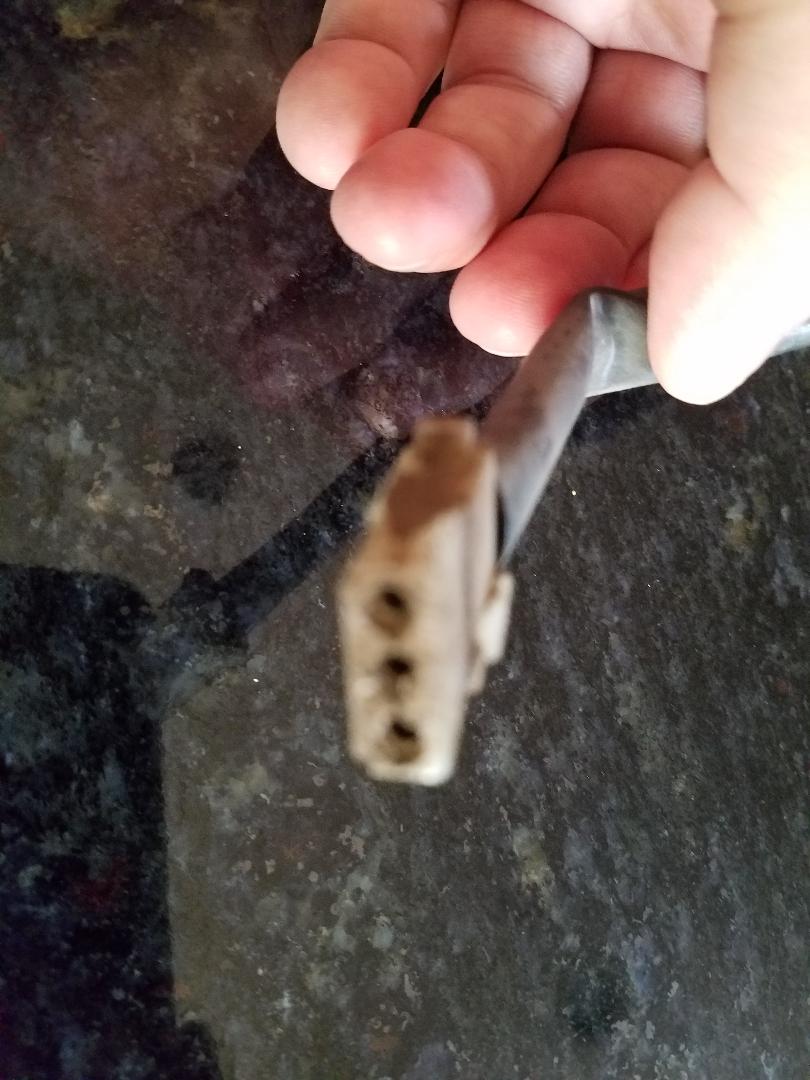

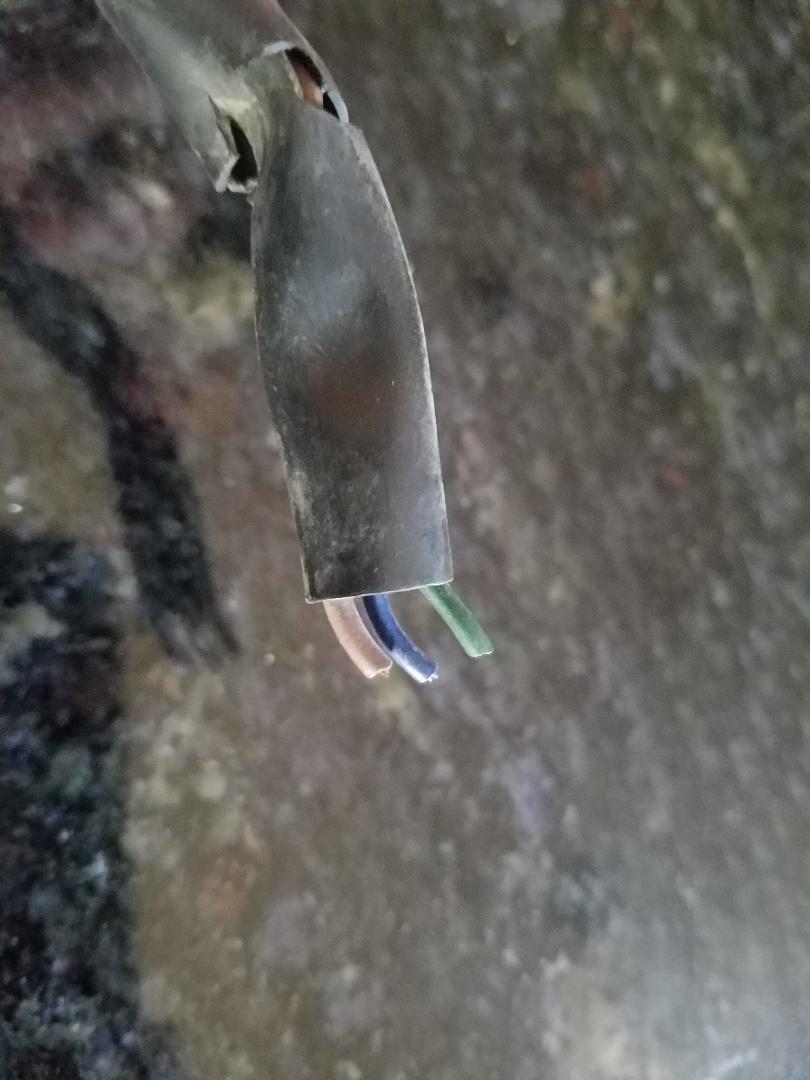

Hi everyone. I have a 2004 Sportsman 500 I just had to replace the spark plug, wire and coil. I have been having issues with it keeping a charge and starting and I just noticed underneath on my garage floor this cut 3 wire connector. The wire colors are brown, blue and green. I'm pretty sure this would have been under the front of the 4 wheeler. Can anyone identify where it goes to before I have to tear it all apart again? The plug wire boot tore pretty easily the first time and I had to tear it completely apart to get the tore boot out of the head and get the plug out. Does anyone have a link to a good electrical schematic? Only ones Ive seen don't blow up well.

Thanks!
