Restoring a 1989 quadracer and have the right and left rear fender support brackets. However, I can not figure out where they go. I bought the quad in pieces and the schematics do not help. Any one that had/has one of these machines that can help with pics or directions I would appreciate it.



could you take some pics of the brakcets?

my 86 only has the two arms that come off of the grab bar, and the bolts under the seat, and thats it. theyre very solid and dont flap around at all. however, there is a little thing clamped to the left rear of the frame which looks like it should hold the plastics, but theres no hole so i dont use it.



I will as soon as I can figure out how to attach a pic

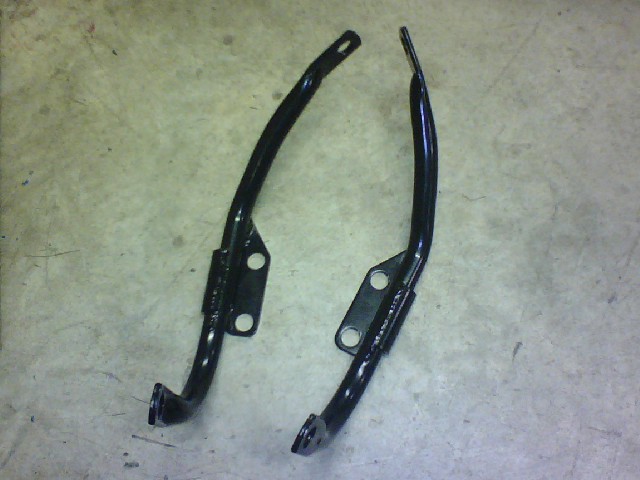

I guess it worked go figure-these are the braces for the rear fenders that I need to figure out how/where they go.



alright, heres how things appear to me:

the bracket on the right side of you image goes on the left side of the quad (if you were sitting on it).

they face so that the longer part (longer arm sprouting from the mounting area) goes towards the front of the quad.

then two bolts secure them to the arms coming off of the grab bar.

they should have a slight curve to them in the direction of an upside down "U".

according to suzuki, theres supposed to be some rubber pieces on there, btw.

hth
