Suzuki Quad Lt230GEF help!!
#1
Suzuki Quad Lt230GEF help!!
First of all Hello!
I was given this quad bike out of a friends shed a while ago and now ive finally gotten aroudn to looking at it and im in dire need of some help.
First of all the back brake, im having difficulties on how to take the drum off so that way i can change the shoes or replace what ever is broken.
This seems to be the only issue i have right now... Fingers crossed!
Thanks for you help
I was given this quad bike out of a friends shed a while ago and now ive finally gotten aroudn to looking at it and im in dire need of some help.
First of all the back brake, im having difficulties on how to take the drum off so that way i can change the shoes or replace what ever is broken.
This seems to be the only issue i have right now... Fingers crossed!
Thanks for you help
#3
#4
#5
#6
The drum slides off the left side of the axle, which means, you have to slide the entire axle out of the quad to get the drum off. I dont really know why they did this. I have an LT230F shaft drive, and we loosened the 2 nuts on the left side of the axle housing so they were not threaded on, and slid the axle over as far as we could to get the rear shoes off.
#7
Trending Topics
#8
On mine, I just undid the 2 large nuts on the left hand side of the axle housing, on the axle, and the axle slides through, if you want to take the drum off, you have to remove the left side wheel and hub, and the entire axle should slide through, no need to touch the diff or bearings. Mine does not have a diff, it is actually just a ring and pinion in there, I assume yours is the same, it looks the same back there. Mine has a dual range box between the engine and ring and pinion.
If you just want to replace the shoes like I did, I left the hub on, you can slide the axle about 10" over, or untill the hub hits the axle housing
If you just want to replace the shoes like I did, I left the hub on, you can slide the axle about 10" over, or untill the hub hits the axle housing
#10

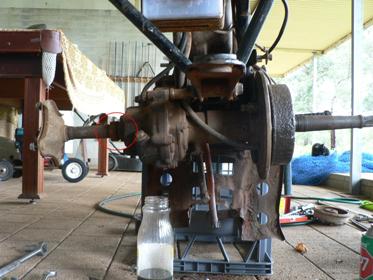

On mine, there are 2 nuts where I circled in the pic , you have to unscrew them completely, and you can slide the axle through. It is old, and may need some assistance with a hammer.
I have a clymer manual and it says that the rear diff unit is non servicable without several special Suzuki tools, and is generally sold as a complete assembled unit.
I have a clymer manual and it says that the rear diff unit is non servicable without several special Suzuki tools, and is generally sold as a complete assembled unit.
