So a friend of mine bought a 91 lt230e and dropped it off to me in a couple boxes. Ive been piecing it together. Right now I'm trying to get it to turn over with the start button. what am i doing wrong? I put in a new starter solenoid Ignition. i have a few wires left unhooked a a set of orange and white/black I'm guessing is to the headlight? Another set Orange White/Black by Air Box?
and a red wire coming out of one side of the stater connector with the three yellow wires? i think this may have been added in!!! there is no red wire on male side of connector.



You will need to google the wiring diagram or purchase a manual to ensure the wiring is correctly connected. Wiring is just too difficult without a manual.
https://www.tradebit.com/G/manuals/187-suzuki



blah

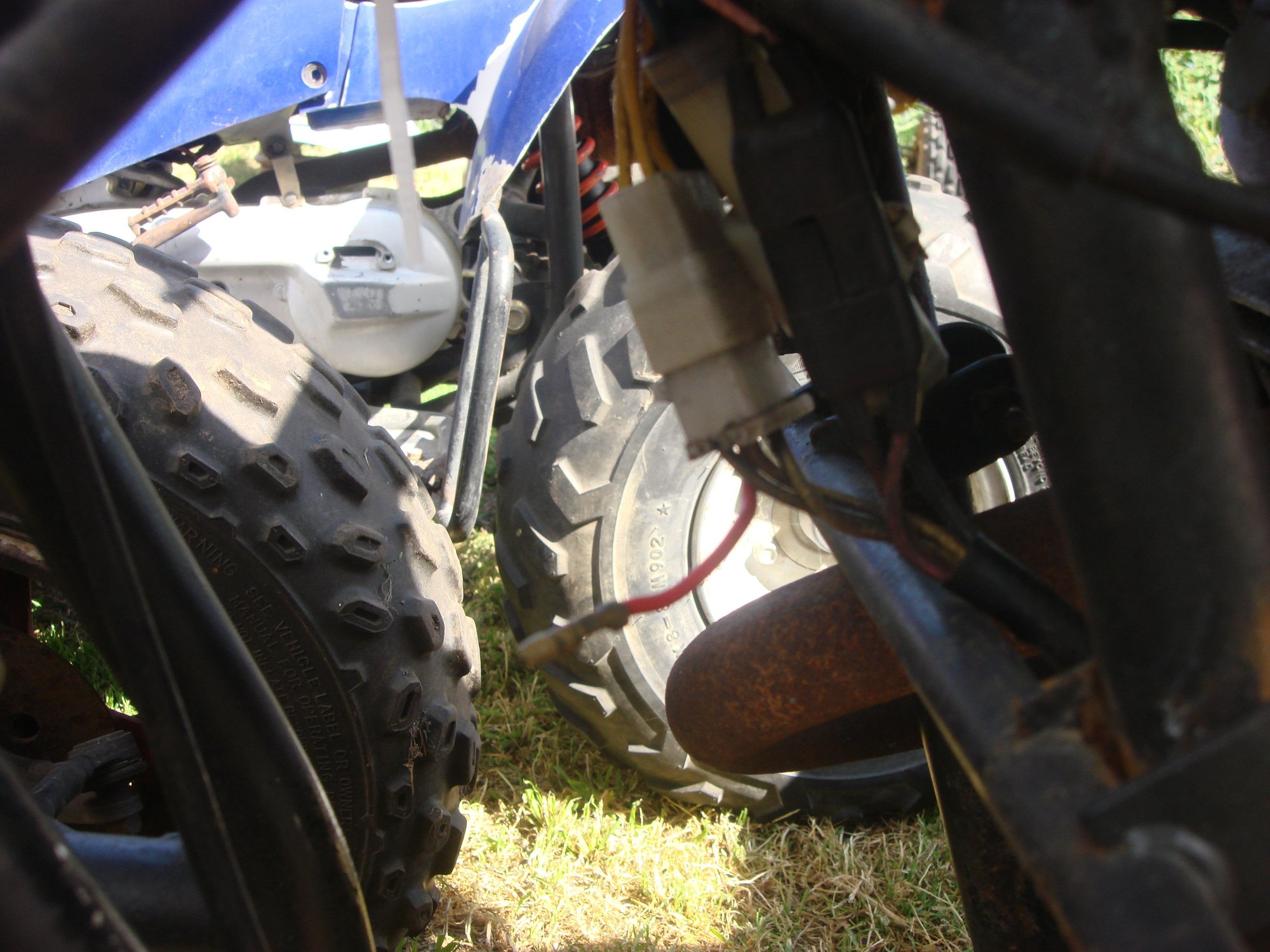

heres the red wire, as you can see there is no corresponding wire on other side

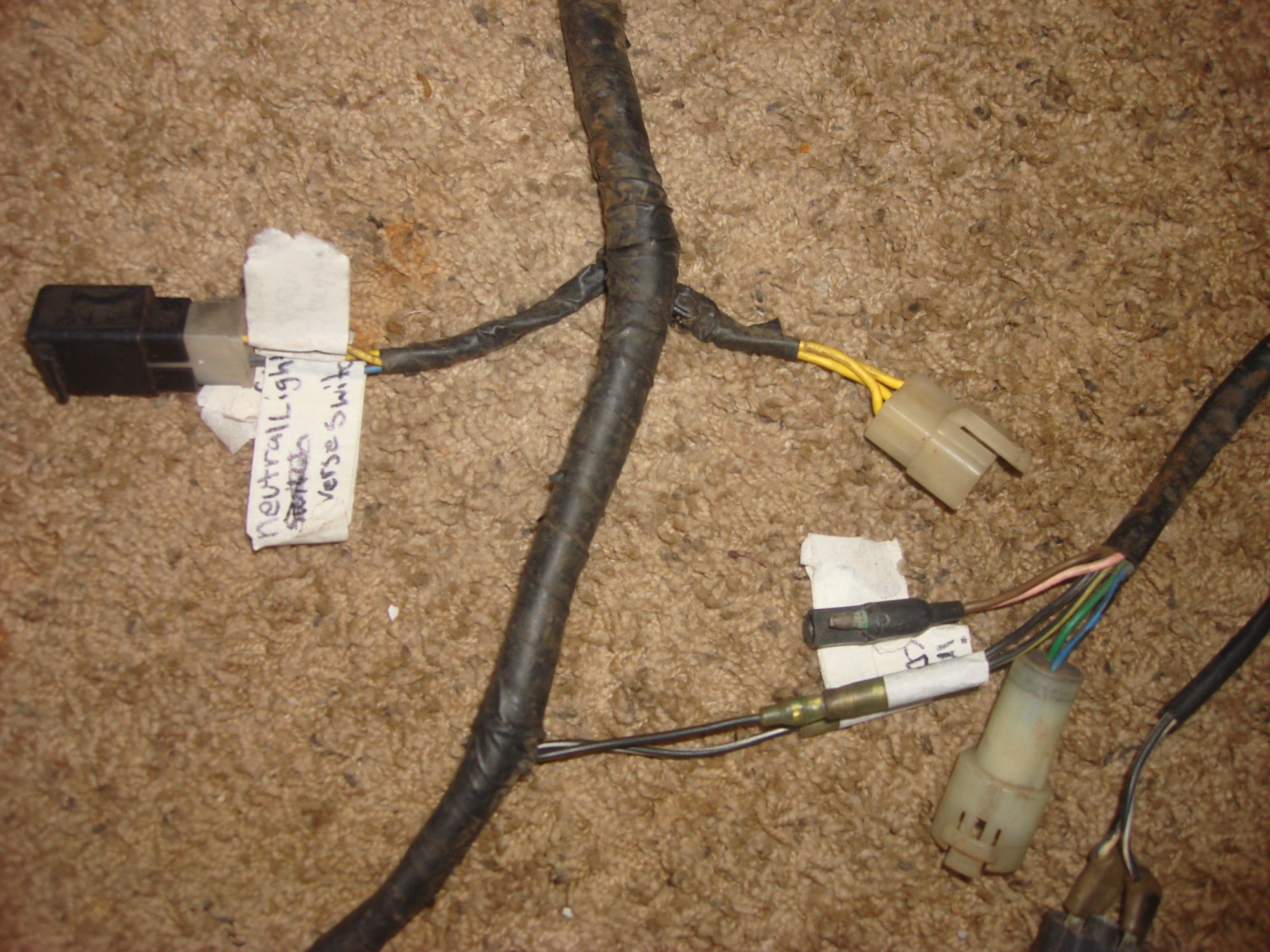

here is another harness no red wire



here we have the set by the air box i think there just acc but i wanted to be 100



and there is a identical set to the nose, that im guessing go to head light again just wanted to be 100



As far as the rest of the wiring goes i think you half to be a dumb aSpam wordSpam word Spam wordSpam word Spam wordSpam word Spam wordSpam word to mix up molex connectors and color coded wires.



Maybe the switch is bad? the box had 3 of them



I mentioned the manual because of the wiring and....the accurate testing of the wiring, and associated componants. Yes, could be a faulty ignition switch, stater switch, solenoid, starter, broken wire, pushed pin in a connector. You mentioned that you had replaced a few things, hopefully they were all good ( the new ones ) because I have rcvd many "bad" electrical parts that were "knock offs".
Anyway, check the starter switch, the resistance, it may be bad or....try jumping the solenoid to see if that will turn the engine over...then back track from there.
