Here's the pics. Just remember I did some research and calculations for this but I don't mind sharing with fellow ATV enthusiasts.
If you need clarification just PM me.

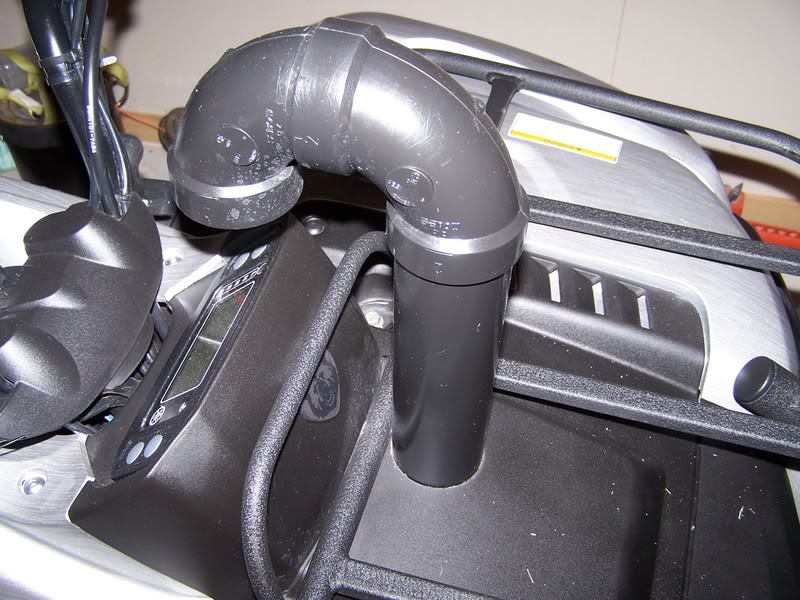

Here it is with the front panel lifted to show the connection to the factory air intake.




I have tried this snorkel in deep swamps and the belt drive stayed absolutely dry. I actually went way deeper than this photo shows.




P.S. I'm probably sure that many of you don't care about this but we had to put our friend down after 11 good years. She was a companion to our kids and we all miss her a lot.
Taken on her last day.
RIP Dia.



Sorry to hear of your loss. I know that must have been tough.



Hey Head!! I will tell you this.. I wish I had that snorkle on Saturday!!! I swamped the front... and the belt housing got all full of water!!! 1 hour later and two different winch points.. I was out of the pond! hahaha... also another time when I wish I had the winch on the back.. hahaha.. Next stop - Home depot!



Sorry for your loss, head....................



sorry for your loss also head



Could this be done as easy on an 07 Wolverine?
