03 Eiger 4x4 Transfer Lever Installation
My 4x4 to 4x2 transfer lever mechanism broke on my 03 Eiger. I ordered the replacement metal part and now I am trying to figure out how to get it installed. Could someone who has done this before give me some basic instructions? How do I release the tension on the cable so I can get the lever mechanism installed, my guess is the nut at the differential end of the cable needs to be loosened but it doesn't look like it has enough slack?

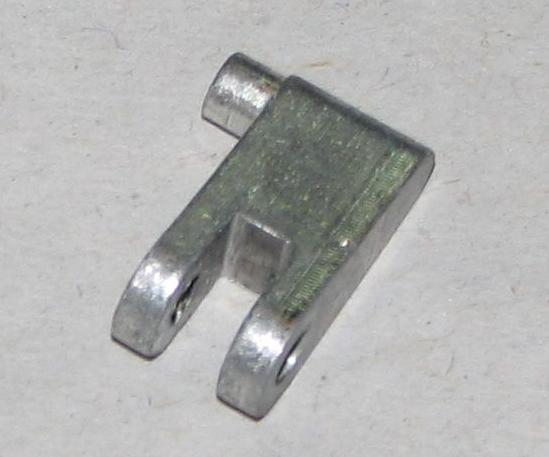

The replacement part (lever mechanism) looks like this
From my understanding It needs to install on the end of the cable here
and the other end of the cable is attached to the differential like so, the red arrow is pointing at what looks like a tensioner nut
Thanks for any advice!!
The replacement part (lever mechanism) looks like this
From my understanding It needs to install on the end of the cable here
and the other end of the cable is attached to the differential like so, the red arrow is pointing at what looks like a tensioner nut
Thanks for any advice!!
#2
It is a horrible set up on the Eiger and worse on the 400 King Quad. Pull the plunger out of the diff (vice grips with screwdriver behind), this may give enough slack. If not, a mid cable adjuster is fitted just below the control box in about the most awkward place they could find. Adjust this to give some slack, fit the new part and then adjust it back so you get it going in and out of 4WD correctly. Jacking the front wheels up and spinning them by hand while adjusting helps.
#3
It is a horrible set up on the Eiger and worse on the 400 King Quad. Pull the plunger out of the diff (vice grips with screwdriver behind), this may give enough slack. If not, a mid cable adjuster is fitted just below the control box in about the most awkward place they could find. Adjust this to give some slack, fit the new part and then adjust it back so you get it going in and out of 4WD correctly. Jacking the front wheels up and spinning them by hand while adjusting helps.
#4
#5
Hey my 4wd lever seems to be broken too, it wont shift out of 4x4, and since my King quad 400 doesn't have an indicator light for 4wd, I didn't noticed until yesterday rear tires were on the air and front tires would still rotate when accelerating.
Does anyone knows where I can find a tutorial to change the lever mechanism, I also bought the aluminum replacement so that wont be a problem again, but I'm not quite sure how to change it.
Does anyone knows where I can find a tutorial to change the lever mechanism, I also bought the aluminum replacement so that wont be a problem again, but I'm not quite sure how to change it.
#6
#7
Please don't start jumping into another dead thread, especially a 12 year old one.
As I wrote above, the cable adjuster is just below the control box (4WD lever), right about where it goes between the front plastic and the steering column. I take the control box off the handlebars and pass it down under the wheelarch on KQs, there is a bit more room on an Eiger so you can, just, adjust it it in place. When you put the box back onto the handles the adjustment alters slightly, so double check before tightening up.
As I wrote above, the cable adjuster is just below the control box (4WD lever), right about where it goes between the front plastic and the steering column. I take the control box off the handlebars and pass it down under the wheelarch on KQs, there is a bit more room on an Eiger so you can, just, adjust it it in place. When you put the box back onto the handles the adjustment alters slightly, so double check before tightening up.
